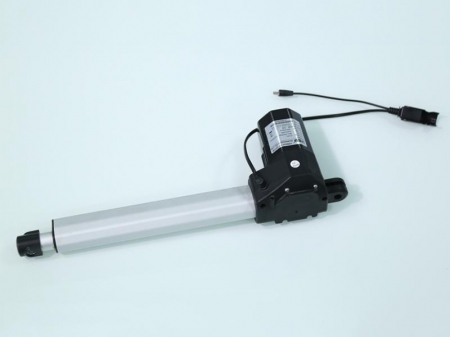

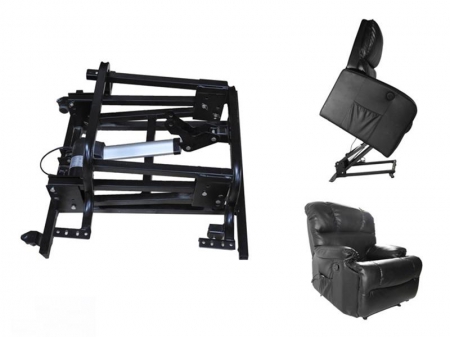

The U1 model electric linear actuator is specially designed for electric sofas and smart reclining chairs, and provides a push force up to 6,000N, and an optional Hall sensor to output the signal.

This type of linear actuator uses a CE certified DC motor. All material used in the electric line actuator production has passed an aging test to ensure quality, and noise levels produced by the motor must be less than 52dB. Because of these factors, this linear actuator type is ideal for electric sofas and smart reclining chairs.

This linear actuator is also equipped with a power adaptor, manual controller and control box in order to improve user experience.

• Voltage:12/24V DC
• Max load capacity:6000N(push), 4000N(pull)
• No-load velocity:6~39.5mm/s
• Full-load velocity:3.1~23.4mm/s
• Minimum installation distance: s + 163mm
• Noise level:less than 52dB
• Option: Hall sensor

• The linear actuator features a small size, large maximum load capacity, low weight, low noise and excellent self-locking performance.
• It is equipped with a built-in limit switch. The motor will automatically turn off at the end of each stroke.
• The linear actuator uses a metal gearbox and features a long service life.
• This product is designed with an exceptionally durable structure.
• It carries out a variety of functions, including lift, drop, tilt, and rotate.
• A manual controller and power source is optional.
• This linear actuator is widely used in medical beds, electric beds, massage chairs and other motorized furniture.

① Load VS Curent; ② current (A); ③ load(N); ④ Load VS Speed; ⑤ speed (mm/s)

Comment: when the voltage change from 24V to 12V, the current will be doubled

• 1=12V
  2=24V(standard)

• 1=Plastic clevis, slot 6.2mm, hole Φ10.2mm
  C=customization

• 1=Black
  2=Ivory white
  C=customization

• 1=no
  2=single Hall sensor
  3=Dual Hall sensor
  4=reed sensor

• 1=no(standard)
  2=safe standby screw
  3=only push
  4=safe standby screw, only push

• 1=no
  3=One four-and-a-half-cycle torsional spring
  2=One three-cycle torsional spring
  4=motor brake

• 1=Switches in both end off to stop
  2=Switches in both end off to output signal
  3=Switches in both end off to stop and a third one off to output signal
  4=Switches in both end and a third one off to output signal
  C=customization

• 1=Width 26mm, hole Φ10.2mm
  2=Width 26mm, hole Φ12.2mm
  3=Width 32mm, hole Φ10.2mm with plastic cap
  4=Width 32mm, hole Φ12.2mm with plastic cap
  5 =Plastic clevis, width 32mm, slot 8.2mm, hole Φ10.2mm
  6 =Plastic clevis, width 32mm, slot 8.2mm, hole Φ12.2mm
  7=Aluminium alloy clevis, width 26mm, slot 6.2mm, hole Φ10.2mm
  8=Aluminium alloy clevis, width 26mm, slot 6.2mm, hole Φ12.2mm
  9=Aluminium alloy clevis+vinyl sleeve, width 26mm, slot 6.2mm, hole Φ10.2mm
  C=customization

• 1=Tined leads
  2= 01 Pin
  3=Din 4 pin, 90°
  4=Din 5 pin, 90°
  5=Din 6 pin, 90°
  C=customization

• 1=0.5m
  2=1m
  3=1m
  4=2m
  5=3m
  C=customization

• 1=straight
  2=coiled
