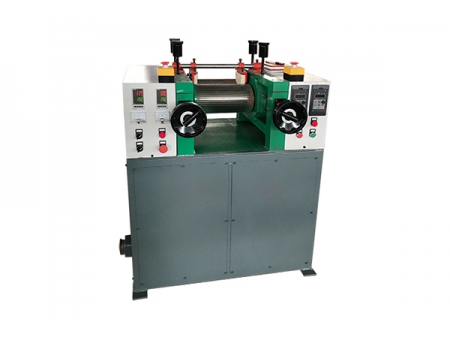

Lab Mixing Mill

Request a Quote

View All: http://rubber-process.com/2-1-lab-mixing-mill.html

Applications

Our laboratory mixing mill ensures that natural or synthetic rubber is evenly blended with other raw materials. With this lab mixing mill, all of the raw materials can be perfectly mixed in accordance with required specifications.

Specifications

Model	XK-160
Roll size	160×320
Roll friction ratio	1:1.35
Front roll speed	17.85r/min
Rolls spacing	0-4mm
Capacity per batch	1-15 Kg
Motor power	5.5
Overall Dimension (L×W×L)	1500mm×750mm×1500mm
Remark	Electric heating can adjust temperature between room temperature to 220℃ Bearing type drive Sealed by high temperature resistant seals, eliminating oil leakage

Features

The lab mixing mill can be equipped with infrared unit to ensure operator's safety during the process;
This laboratory mixing mill can be provided with electric heating system, steam heating system or water cooling system;
The rubber mixing machine allows operator to control it at front or back side, and there is an emergency stop device placed under the lab mixing mill to respond to an emergency situation thereby ensuring the safety of personnel;

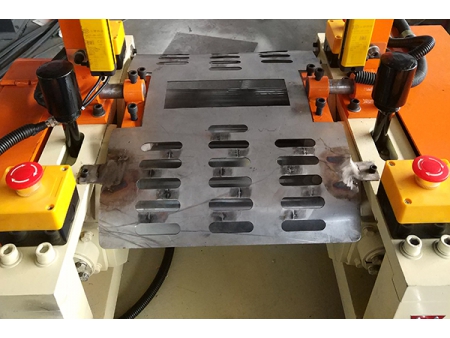

Safety protection cover can be added over the rolls to ensure the safety of operator;
