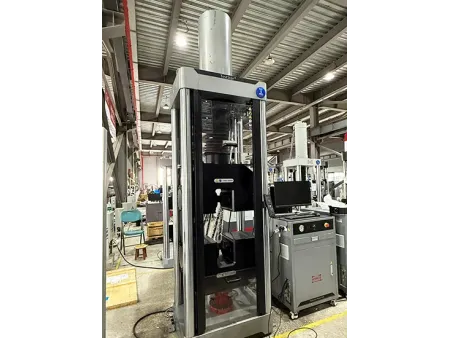

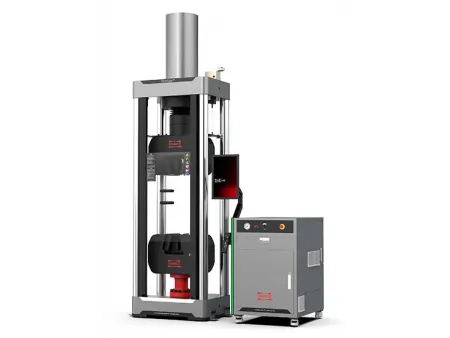

Servo-Hydraulic Universal Testing Machine, Single Space, Wedge Action Grip

Request a Quote

Website: http://testingmachine-en.com/2-2-servo-hydraulic-universal-testing-machines.html

HUT-D Series (600kN-2000kN)

The utilizes a top-mounted actuator design, enabling a dual-acting differential cylinder to perform both tensile and compression tests within a single test space. A zero-backlash load frame and an actuator with adjustable vertical positioning provide flexible test-space configuration and ensure long-term stability under demanding testing conditions. Primarily designed for tensile testing of metallic materials, the HUT-D series supports force, displacement, and strain closed-loop control, with seamless transitions between control modes. Test results are automatically calculated by the software and can be printed or exported in multiple formats.

Applications

Rebar, welded components, castings, fasteners, chains, etc.

Standards

ISO 7500-1, ISO 9513, ISO6892, ISO 15630, ISO 15835, BS 4449, ASTM E8, ASTM E 83, ASTM E4, ASTM A370, ASTM A416

Features

Energy-Efficient and Eco-Friendly Design

Compared with the previous generation, the new HUT-D Series delivers significant performance improvements:

15% reduction in noise
74% reduction in power consumption during testing
8%-29% reduction in footprint, depending on model size

High-Stiffness Load Frame

Frame stiffness has been increased by 120%-188% compared with the previous generation. This improves measurement accuracy and reduces machine vibration during testing.

High Speed, High Efficiency, and Easy Operation

Upgraded hydraulic power unit and optimized piping design increase no-load running speed and overall testing efficiency. Optional integrated touchscreen PC provides intuitive machine control and quick test setup.

Smart Visual Interaction System

An intelligent four-color status indicator (compliant with IEC 60073) provides clear visual feedback on machine status. This intuitive signaling system helps operators avoid improper actions and enhances overall operational safety and efficiency.

Intelligent Handset Controller

The new Handset V3.0 features a 3.5-inch high-resolution touchscreen, displaying real-time load, crosshead position, machine status, and grip status. The touchscreen interface allows users to enable the servo system directly.

The jog wheel enables servo activation and supports quick language switching. Dedicated function keys provide grip open/close control and allow rapid return to a preset initial position.

Fine Adjustment Jog Wheel Control
Grip Open/Close Control
Specimen Protection Function
Test Start/Stop
Crosshead Up/Down Control
Return to Initial Position
Initial Position Memory

Specifications

Model	HUT305D	HUT605D		HUT106D	HUT206D
Capacity,kN	300	600		1000	2000
Measured accuracy	Class 0.5
Load accuracy	±0.5% of reading, down to 1% of load cell capacity
Load resolution	1/600,000FS
Loading rate, FS/s	0.02% -2%
Position accuracy	±0.5% or 0.13mm, whichever is bigger
Position resolution, mm	0.004
Strain accuracy	± 0.5% of reading down to 2% of full range to ASTM E83 class B-1, B-2 or ISO 9513 class 0.5 extensometer
Strain resolution	± 1/600,000FS
Stiffness, kN/mm	520		700	950	1820
Up speed, mm/min	630		340	625	305
Down speed, mm/min	450		710	1400	650
Distance between columns, mm	520x 390		550x370	650x400	650x400
Distance between tensile grips, mm H	500		500	600	780
Max. compression space, mm	320		300	395	500
Diameter of round specimens, mm	⌀5-⌀12 ⌀12-⌀22		⌀5-⌀12 ⌀12-⌀22 ⌀22-⌀32	⌀5-⌀12 ⌀12-⌀22 ⌀22-Ф32 ⌀32-⌀40	⌀5-⌀12 ⌀12-⌀22 ⌀22-⌀32 ⌀32-⌀50
Thickness of flat specimen, mm	2-13, 13-25		2-16, 16-30	2-25, 25-50	10-40, 40-70
Compression platen, mm	⌀150		⌀150	200x200	⌀240
Piston travel, mm	500		500	600	600
Power, kW	4.5		4.5	12.5
Electric supply	380V±10%, 50Hz, three-phase
Dimension, mm AxBxC	600x470x2470		730x550x2700	870x620x3110	1100x800x4055
Machine weight, kg	1100		2000	4200	8500
HPU size, mm ExFxG	650x800x1010
HPU weight, kg	260
HPU oil	#46 hydraulic oil,108 liter
