Straight Push-In Fittings
- Protection rating: IP65 (dustproof and waterproof, suitable for humid and dusty environments)
- Reaction time: ≤10 ms (enabling high-frequency switching and faster cycle times)
- Operating pressure: 0.1–1.0 MPa (high-pressure versions available up to 1.6 MPa)
- Operating temperature: -10°C−80°C (high-temperature versions up to 120°C)
Straight push-in fittings are high-performance pneumatic connectors designed for industrial automation, manufacturing, and assembly applications. The precision push-in design enables tool-free, quick installation, which significantly reducing setup time and labor costs while ensuring a secure, leak-free connection. These fittings support customization in materials, port types (male/female), performance parameters, function extensions, appearance, and labeling to meet automation needs.
| Model | D | R | A | B | S1 | S2 | X |
| | 4 | M5 | 4 | 22.1 | 10 | 2 | 9.9 |
| | 4 | M6 | 4.5 | 22.5 | 10 | 2 | 9.9 |
| | 4 | PT1/8 | 7.5 | 20.3 | 10 | 3 | 9.9 |
| | 4 | PT1/4 | 9.5 | 19 | 14 | 3 | 9.9 |
| | 6 | M5 | 4 | 22.3 | 12 | 2 | 11.9 |
| | 6 | M6 | 4.5 | 23 | 12 | 2 | 11.9 |
| | 6 | PT1/8 | 7.5 | 20.8 | 12 | 4 | 11.9 |
| | 6 | PT1/4 | 9.5 | 23.8 | 14 | 4 | 11.9 |
| | 6 | PT3/8 | 10.5 | 24.2 | 17 | 4 | 11.9 |
| | 6 | PT1/2 | 13.5 | 26.6 | 21 | 4 | 11.9 |
| | 8 | PT1/8 | 7.5 | 26.5 | 14 | 5 | 13.9 |
| | 8 | PT1/4 | 9.5 | 24.7 | 14 | 6 | 13.9 |
| | 8 | P3/8 | 10.5 | 22 | 17 | 6 | 13.9 |
| | 8 | PT1/2 | 13.5 | 25.3 | 21 | 6 | 13.9 |
| | 10 | PT1/8 | 7.5 | 30 | 17 | 5 | 16.9 |
| | 10 | PT1/4 | 9.5 | 31.3 | 17 | 6 | 16.9 |
| | 10 | PT3/8 | 10.5 | 28.5 | 17 | 8 | 16.9 |
| | 10 | PT1/2 | 13.5 | 25.9 | 21 | 8 | 16.9 |
| | 12 | PT1/8 | 7.5 | 32.1 | 20 | 5 | 19.9 |
| | 12 | PT1/4 | 9.5 | 34 | 20 | 6 | 19.9 |
| | 12 | PT3/8 | 10.5 | 30.2 | 20 | 8 | 19.9 |
| | 12 | P1/2 | 13.5 | 32.2 | 21 | 8 | 19.9 |
| | 14 | PT1/4 | 7.5 | 36 | 22 | 8 | 21.8 |
| | 14 | PT3/8 | 10.5 | 35 | 22 | 8 | 21.8 |
| | 14 | PT1/2 | 13.5 | 33 | 22 | 10 | 21.8 |
| | 16 | PT3/8 | 10.5 | 37.1 | 24 | 8 | 23.8 |
| | 16 | PT1/2 | 13.5 | 34.6 | 24 | 10 | 23.8 |
- Automatic Carton Erectors

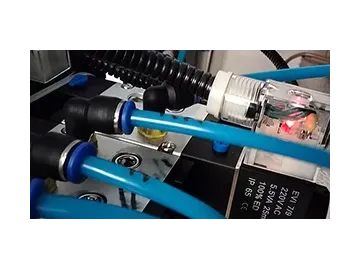

Pneumatic cylinders and pneumatic components are installed and connected with the straight push-in fittings.

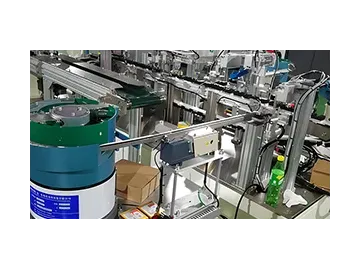

- Automatic Screw Locking Machine
The straight push-in fittings connect pneumatic cylinders, solenoid valves, and air pipes of the machine.
- Automatic Welding Machine
The solenoid valve controls the pneumatic cylinder to secure the PCB board in place. While the board is connected to the solder using a pneumatic fitting.
