Tee & Y Push-In Fittings

Request a Quote

Website: http://solenoidvalve-en.com/2-3-tee-y-push-in-fittings.html

Pneumatic Push-in Fittings Flow control elbow push-in fittings, speed flow controllers for regulating air flow in pneumatic hoses

Tee & Y Push-In Fittings, also known as elbow fittings, adopt a special scale ring design that allow fine flow adjustment down to 0.1 L/min, with a repeat positioning accuracy of ±2%. This eliminates the manual trial-and-error estimation of conventional flow control valves, enabling precise flow control. Full customization is available from materials, port types, performance parameters, functional extensions, appearance, markings, etc., to meet your specific system requirements.

Features

These Tee & Y push-in fittings have a compact body
Top-mounted flow control screw allows easy manual adjustment
Mounting holes that support sliding installation
Self-locking mechanism effectively prevents accidental disconnection
Durable plastic body with strong impact resistance
Compatible with a wide range of pneumatic piping systems
A wide variety of fitting models are available for different needs
Adjustable pipe direction even after installation
Nickel-plated metal body provides superior corrosion and contamination resistance

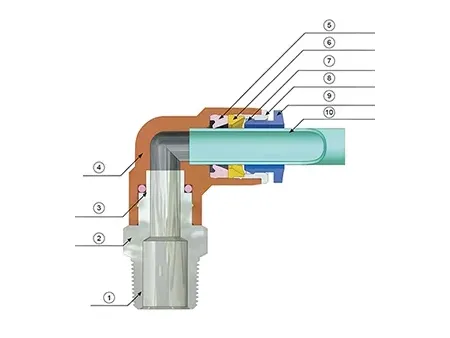

Fitting Structure

Thread

Body (Brass)

O-ring (NBR)

Housing (PBT)

V-seal (NBR)

Back ring (POM)

Lock claw (SUS)

Collar (Brass)

Release sleeve (POM)

Tube

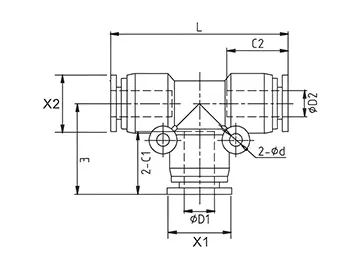

Specifications of Pneumatic Tee Push-In Fittings

Model	ØD	Ød	A	B(Min.)	B(Max.)	E	C	X
GPSA5/32	5/32	3.2	13.7	25.7	28.7	39.5	14.4	9.9
GPSA1/4	1/4	4.3	19.5	38.3	45.3	47.1	15.5	11.9
GPSA5/16	5/16	4.3	21.5	41.4	48.5	52	16.8	13.9
GPSA3/8	3/8	4.3	25.5	46.3	53.5	62.3	19.5	16.9
GPSA1/2	1/2	4.3	31.7	49.3	55.5	73.6	22.3	19.9
