Linear actuators for solar tracking systems

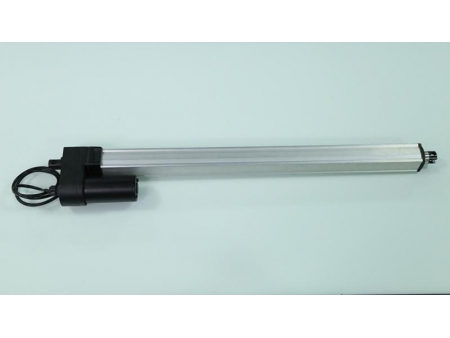

The U10 model linear actuator is specially designed for solar tracking systems, and the front-end and rear-end of the linear actuator can be installed on solar panels or heliostats. The linear actuator is controlled to ensure the solar panels and heliostats face the sunlight in such a way as to allow maximum sunlight absorption and improve electric output by as much as 20%. The screw nuts are made of a copper alloy material (tin bronze and aluminum bronze) to ensure their durability. The maximum static load for this linear actuator is 4,000N, and the maximum dynamic load is 20,000N, with a waterproof class of IP66, to ensure these actuators are suitable for severe environments, feature a longer service life, and require less maintenance.

Material: certificated to UL and CE standards, pass salt mist test, lateral force test and strength test.

Third-Party Authentication: UL, CE and IP66 certification

Parameters
  • Voltage: 12/24/36/48V DC
  • Max dynamic load: 20000N
  • Max static load: 40000N
  • No-load velocity:1.7~2.0mm/s
  • Full-load velocity:1.3~1.5mm/s
  • Duty cycle:10%
  • Waterproof class:IP65
  • Temperature:-25℃ ~ +65℃
  • Option: Hall sensor
Features
  • The linear actuator features a large maximum load capacity and excellent reliability.
  • Its shell features an excellent corrosion resistance.
  • This product is waterproof, dustproof, and has an excellent resistance to salt spray, making it ideal for use in harsh environments.
  • It uses a metal gearbox and features a long service life.
  • This linear actuator is designed with a stable, durable structure.
  • It requires very minimal maintenance and features a low energy consumption.
  • The linear actuator has a self-locking function and is easy to install.
  • It has three different installation methods: handle on tube, trunnion on tube, and front-rear.

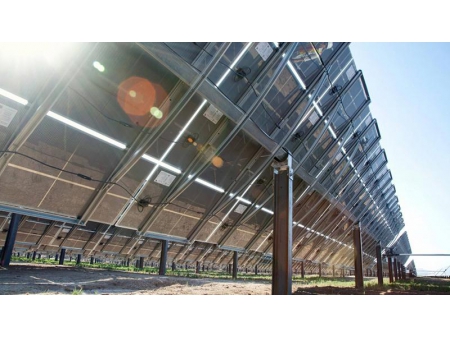

  • This heavy-duty linear actuator is widely used in photovoltaic industries for mounting solar trackers.
Appearance and size

Curve graph

① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)

Code of Parameters
code Rated laod(N) Rated current(A) Rated speed(mm/s)
Push Pull No-load(24VDC) Full-load(24VDC)
A 20000 20000 7 1.5 1.2
B 15000 15000 6 1.5 1.4

Comment: when the voltage changes from 24V to 12V, the current will be doubled.

Customization parameter
  • 1=12V
    2=24V
    3=36V
    4=48V

  • 1=Front-Rear
    2=Trunnion on tube
    C=customization

  • 1=rod type,Φ16mm
    2=holeΦ13.2mm
    3=holeΦ15.2mm
    4=holeΦ16.2mm
    5=clevis, slot 8.2mm, hole Φ13.2mm
    6=rod type,Φ13mm
    7=rod type,Φ20mm
    8=rod type,Φ30mm
    9=screw M16×1.5-20L
    C=customization

  • 1=holeΦ13.2mm
    2 =hole Φ15.2mm
    3=holeΦ16.2mm
    4=clevis, slot 8.2mm, hole Φ13.2mm
    5=rod type,Φ13mm
    6=rod type,Φ16mm
    7=rod type,Φ20mm
    8=rod type,Φ30mm
    9=screw M16×1.5-20L
    C=customization

  • 1=IP54
    2=IP65
    3=IP66
    C=customization

  • 1=no
    2=Hall sensor
    C=customization

  • 1=Tined leads
    2=Din 5 pin
    3=aviation plug
    C=customization

  • 1=1m
    2=1.5 m
    3=2m
    4=3m
    C=customization
