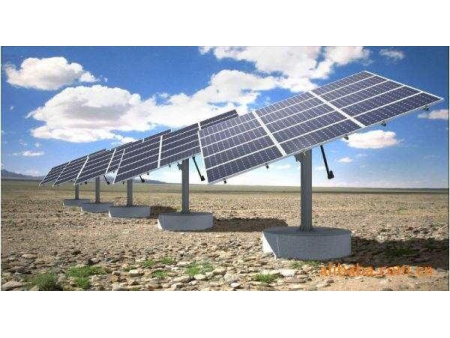

Linear actuators for solar tracking systems

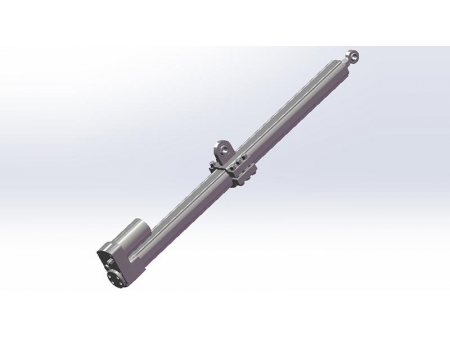

The U10L model linear track actuator is a linear actuator specially designed for solar tacking system, and features a maximum push force up to 12000N. We can add handles or trunnions to the tube according to customer requirements, and installation is easy and flexible.

Parameters

Voltage: 12/24/36/48V DC
Max dynamic load: 12000N
Max static load: 25000N
No-load velocity: 1.5mm/s
Full-load velocity: 1.2mm/s
Duty cycle：10%
Waterproof class：IP65
Temperature：-25℃ ~ +65℃
Option: Hall sensor

Appearance and size

Curve graph

① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)

Code of Parameters

code	Rated laod（N）		Rated current（A）	Rated speed（mm/s）
code	Push	Pull	Rated current（A）	No-load(24VDC)	Full-load(24VDC)
A	12000	12000	5	1.5	1.2
B	8000	8000	4	1.5	1.4

Comment: when the voltage changes from 24V to 12V, the current will be doubled.

Customization parameter

1=12V
2=24V(standard)
3=36V
4=48V
1=holeΦ20mm
2 =hole Φ30mm
3=rod typeΦ20mm
4=rod typeΦ30mm
C=customization

1=Front-Rear
2=Trunnion on tube
3=Handle on tube
C=customization
1=no
2=holeΦ20mm
3=holeΦ30mm
4=rod type,Φ20mm
5=rod type,Φ30mm
C=customization

1=no
2=Hall sensor
C=customization
1=IP54
2=IP65(standard)
3=IP66
C=customization

1=Tined leads
2=Din 5 pin male
3=Delphi pin
C=customization
1=1m
2=1.5 m
3=2m
4=3m
C=customization
