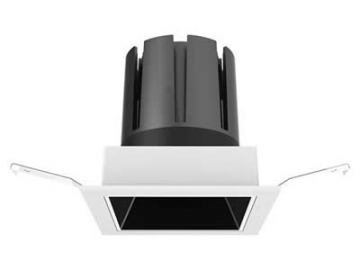

(P Series) LED COB Downlight with Square Cover
Request a Quote
Features
- The P series COB LED downlight features a split design. We can use embedded installation or integral installation. The installation method is convenient, and will not damage the ceiling or light.
- Lenses and reflectors are available in two optical forms. They are suitable for different areas of hotel lighting and wall lamps.
- The reflector has silver, champagne, and black colors for you to choose from. It also provides better anti-glare performance than ordinary lamps.
- New patented mounting clip design with multiple installation methods that will not damage its elasticity.
- The die-casting aluminum materials with high efficiency heat dissipation structure delivers superior heat dispersion.
- High quality LED light sources to choose from: Citizen COB, and Cree COB.
- The surface of the radiator is painted with a titanium color, and the surface of the front cover is white painted, giving an exquisite workmanship appearance.
Specification
- Power 7W/12W
- LED Chip Citizen/CREE COB
- LED Driver Tridonic, Philips, OSRAM, Lifud, BOKE and others are available
- Dimming option Non-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.9
- Input Voltage AC220-240V/AC100-240V50/60Hz
- Beam Angle 15°,24°,38°(reflector),15°,24°,35°(lens)
- Luminous Efficacy 60-80 lm/W @CRI80 (whole lamp)
- Body Material ADC12 die-casting aluminum alloy
- Adjustable 360° rotation horizontally
- Housing color White ring and Titanium color heat sink
- Lifespan 50000 hours
- Warranty 3-5 Years

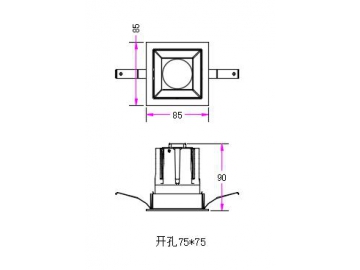

Dimension
7-12wProduct Models
| Model No. | Power | Dimension | Cut Hole Dimension | LED Chip | CCT | CRI | |
| BH-DL-07W-P | 7W | L85*W85*H90mm | 75*75mm | Citizen/ CREE COB | 2700K 3000K 4000K 5000K | 80 90 97 | |
| BH-DL-12W-P | 12W |
Application

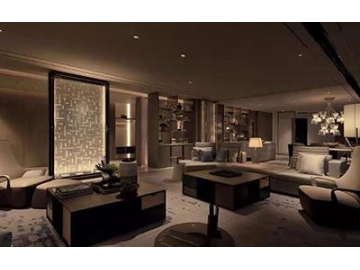

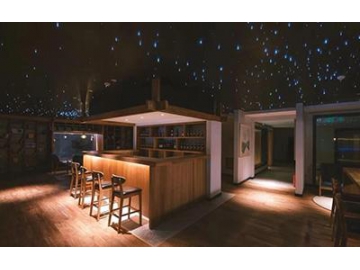

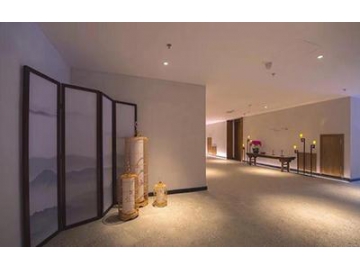

P series COB LED downlight can be used in galleries, museums, churches, cinemas, exbition halls, hotels and other commercial or private places.
