X Series LED Downlight, High Performance COB LED Downlight
Request a Quote
Features

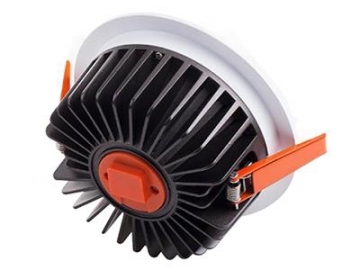

- The ADC12 die-casting aluminum radiator has a large heat dissipation area and quick heat dissipation rate, which can extend the LED lifespan.
- The surface of the radiator is painted with a titanium color, and the surface of the front cover is white painted, giving an exquisite workmanship appearance.
- The semi toughened glass front cover is 1.5mm thick with a transmittance rate as high as 95%.
- The Φ110mm and Φ145mm downlight features spring clips for recessed installation, which is fast, convenient, safe and stable. The spring clip is examined using a salt spraying test. The clip can be used in different ceiling thicknesses and will not rust.
- The Φ190mm and Φ230mm downlight use a bracket for recessed installation. Users first install the downlight body and then the cover (the cover will not be scratched during installation). The specially designed bracket can be adjusted up and down in a flexible manner, and can be used in ceilings with different thicknesses. Disassembly is simple and convenient.
- The rear cover wiring uses separate wiring, which can completely separate the driver from the downlight with a simple structure.
- The front cover features a glare resistant design, which is currently a popular trend on the LED lighting market.
- The color render index(CRI) is Ra97+(2700K/3000K/4000K), which displays the true color of the objects.
- If the CRI is up to 80, the luminous efficiency is more than 100Lm/w.
- The LED downlight's driver is of a high quality, and the light has no strobes, PF>0.9. The LED lighting fixture can eliminate the visual fatigue caused by traditional light flicker.
- There are seven different Y series LED downlights to choose from: 9W, 12W, 15W, 18W, 24W, 30W, and 40W.
Specification
- LED Chip Citizen/CREE COB
- LED Driver Tridonic, Philips, OSRAM, Lifud, BOKE and others are available
- Dimming option Non-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.9
- Input Voltage AC220-240V/AC100-240V 50/60Hz
- CRI 80+90+97+
- CCT 2700K, 3000K, 4000K, 5000K
- Luminous Efficacy 90-110 lm/W @CRI80 (whole lamp)
- Beam angle 60°
- Body Material ADC12 die-casting aluminum alloy
- Housing color White ring and Titanium color heat sink
- Lifespan 50000 hours
- Warranty 3-5 Years
- 9-15W
- 12-18W
- 18-30W
- 24-40W
Product Models
| Model No. | Power | Fixture Dimension | Cut Hole Dimension | |

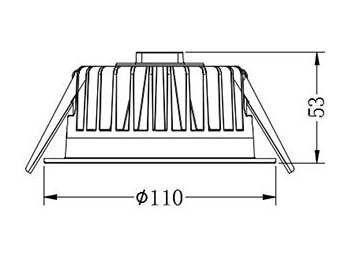

| BH-DL-9W-X | 9W | Φ110*H53mm | Φ95-100mm | |
| BH-DL-15W-X | 15W | | ||

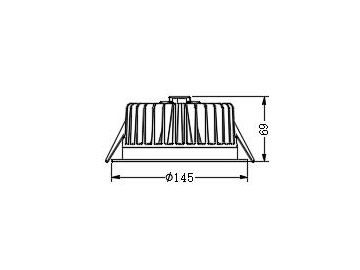

| BH-DL-12W-X | 12W | Φ145*H69mm | Φ125-130mm | |
| BH-DL-18W-X | 18W | | ||

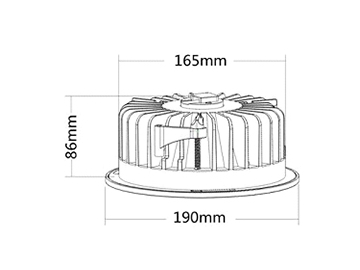

| BH-DL-18W-X1 | 18W | Φ190*H86mm | Φ165-170mm | |
| BH-DL-24W-X | 24W | | ||
| BH-DL-30W-X | 30W | | ||

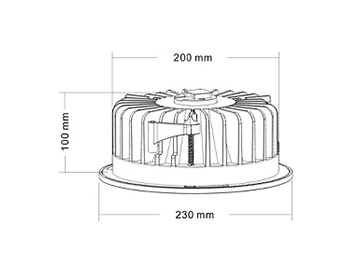

| BH-DL-24W-X1 | 24W | Φ230*H100mm | Φ200-210mm | |
| BH-DL-30W-X1 | 30W | | ||
| BH-DL-40W-X | 40W | |
