Recommended application

Front bucket

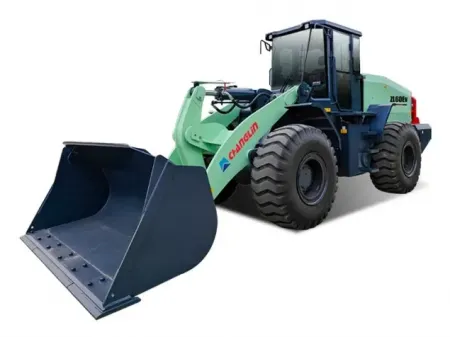

The loading weight of the ZL-50F four wheel drive loader is 5000kg. Using a STEYR six stroke diesel engine, equipped with powerful four wheel drive and specially designed drive shaft, it has excellent obstacle crossing and climbing capacity, thus can be widely used in the construction of agricultural engineering as well as of medium and small buildings, such as highways, mines, brick and tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories.

The bucket is designed with a convenient tailgate, which can prevent the materials from falling during work. If different jobs requirements need to be satisfied, a fast connector can also be chosen to replace various loader mount attachments such as snow bucket, fork, to carry out jobs of different functions.

Technical parameters
Rated loading weight 5000kg
Max. travel speed 38km/h
Rated bucket capacity 3 CBM
Operating weight 16000Kg
Static tilting load at full steering position 98KN
Max. breakout force 172.6KN
Max. drawbar pull 151.9KN
Max. torque 779N.m
Max. grade ability 30degree
Lifting time Dumping time Lowering time 11s
Max. dump height 3098mm
Max. dump reach 1198mm
Min. Ground clearance 450mm
Wheel base 3200mm
Rated power 162KW
Fuel capacity 320 L
Displacement 9.726L
Pressure of working hydraulic system 160kfg/cm2
Min. fuel consuming rate 214g/(kw×h)
Min. turning radius (outside of bucket) 7268mm
Specified rotational speed 2200r/min
Overall dimensions(L×W×H) 7836×3010×3300mm
Detailed information
Engine STEYR WD12G220E11
Engine pattern In-line, vertical, water-cooling, six-stroke diesel engine
Cylinder-bore*stroke 6-126*130
Pattern 3-element,single stage
Number of great shift 4F 4R
Performance of bucket being set level Yes
Main reducer type Spiral bevel gear, moderation of first stage
Pattern of wheel side moderation Single stage planetary
Tyre size 23.5-25
Front tyre pressure 392KPa
Rear tyre pressure 343KPa
Pattern Articulated and hydraulic steering, load sensing meets
Steering angle (each direction) 35 /-1 degree
Brake system Air assisted oil type four wheel brake
Parking brake Air cutting control inner expand hoof
Packing details Nude package, 1Unit/40's HQ with disassembled
  • Operating lever
  • Steering wheel
  • Adjustable seat

Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
