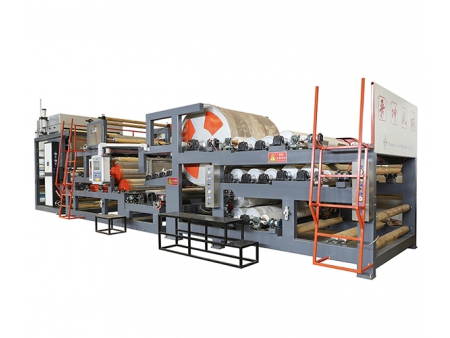

Dry Type Laminating Machine, GF-Q
Request a Quote
This dry type laminating machine is highly automated and easy to operate for high quality and high yield laminating applications. The heating oven uses a constant temperature hot air drying system and the heating roll utilizes an internal heated oil system.
Features
- Double inverter speed adjustment.
- Anilox roller supply glue.
- Photocell unwinding rectifier.
- Unwinding tension controlled by magnetic powder brake
- Double layer pneumatic type open heat oven
- Four segment constant temperature hot air drying
- Heated oil laminating roll
Specification
| Technical data | GF-800Q | GF-1100Q |
| Laminating width | 800mm | 1100mm |
| Diameter of unwinding | 600mm | 600mm |
| Diameter of rewinding | 800mm | 800mm |
| Max mechanical speed | 160m/min | 160m/min |
| Total power | 105kw | 115kw |
| Overall dimensions | 10600X2300X3100mm | 10600X2600X3100mm |
| Weight | 7T | 9T |
Materia
| Firs base material | |
| OPP/BOPP | 15~60um |
| PET | 12~60um |
| PA | 15~60um |
| Second material | |
| PE/CPE/DPE | 20~75um |
| Aluminum foil | 7~20um |
| Paper | 70~120gsm |
