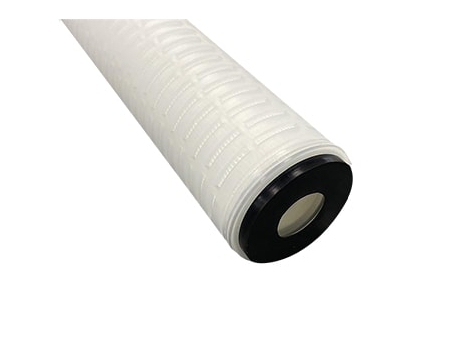

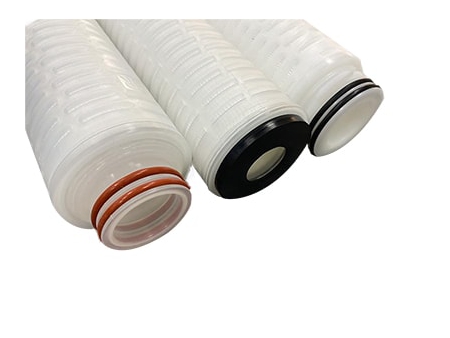

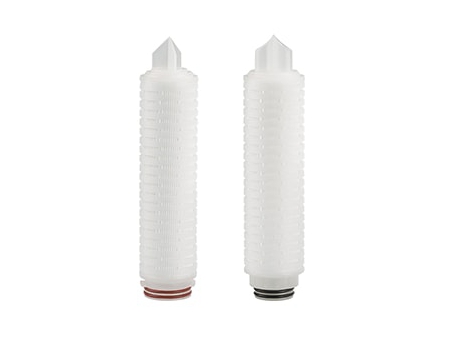

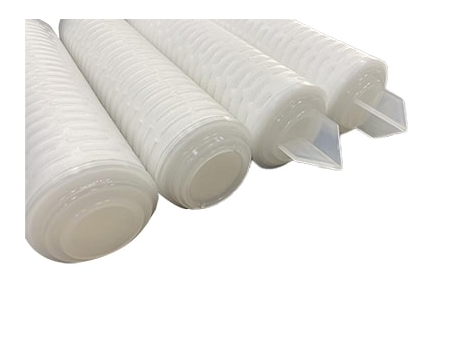

Our absolute rating pleated filter cartridge features a dual-layer multi-granular precision PP membrane. These pleated filter cartridges deliver high dirt holding capacity, extended service life, and efficient filtration. With a fiber structure that guarantees superior purification and high airflow while minimizing air resistance, our absolute rating pleated filter cartridge shows high resistance to deformation.

Materials of Construction
Filter Medium Polypropylene
Drainage Polypropylene
Center Rod/Housing/End Cap Polypropylene
Specifications
Length 5", 10", 20", 30", 40"
Micron Rating 0.3~10μm
Outside Diameter 68.5mm
Steam Disinfection 121℃/30min
Hot Water Sanitization 85℃/30min
Micron Rating 0.1~20μm
Max. differential pressure (inside to outside flow) 4bar/21℃
2.4bar/80℃
Filtration Area 0.5~0.6m2
Filtration Efficiency
PPH >95% >98% >99.8% >99.9%
0.3μm 0.15 0.22 0.3 0.5
0.5μm 0.22 0.3 0.5 0.65
0.65μm 0.45 0.5 0.65 0.8
0.8μm 0.5 0.65 0.8 1.0
1.0μm 0.65 0.8 1.0 3.0
3.0μm 1.0 2.0 3.0 5.0
Applications
  • High-purity reagent and water filtration.
  • High-purity water filtration.
  • Prefiltration in bioprocessing.
  • Filtration of high-precision and high-concentration products.
