Composite Pleated PP Carbon Block Filter, CPC Series Manufacturer

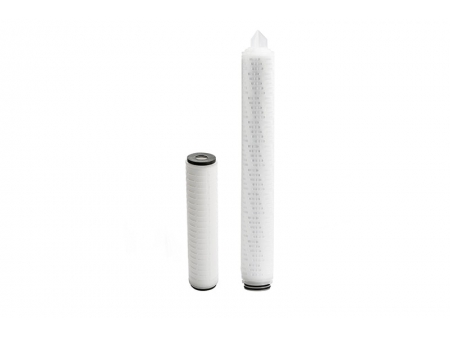

Composite Pleated PP Carbon Block Filter, CPC Series

Request a Quote

View All: http://waterfilter-system.com/5-8-composite-pleated-pp-carbon-block-filter.html

Replacement filter cartridge for water filter system

CPC series composite pleated PP carbon block filter is manufactured from NSF certified high-grade coconut shell activated carbon, enabling efficient removal of residual chlorine, THMs and most organic contaminants. With pleated PP structure, this replacement filter cartridge can significantly reduce particles, rust and colloids therefore providing clean and safe drinking water.

Dimensions

End cap outer diameter (mm)	110
End cap inner diameter (mm)	30
Length (")	10/20

Material of Components

Filter media: high grade coconut shell carbon powder, pleated PP
End caps: PP
Sealing gasket: NBR or silicone rubber
Inner and outer wraps: PP
Netting: PE

Features

Significantly remove chlorine, organic contaminants, foul odor and smell
Effectively reduce particles, rust and colloids
High dirt holding capacity
No black color water resulted from carbon powder leakage

Applicable Conditions

Water temperature: 3-45℃
Inlet water pressure: 0.1-0.6 MPa
Nominal micro rating: 5µm

Applications

Point of use filtration
Whole house water purification
Commercial water purification
Beverage, dairy, coffee & tea shop
