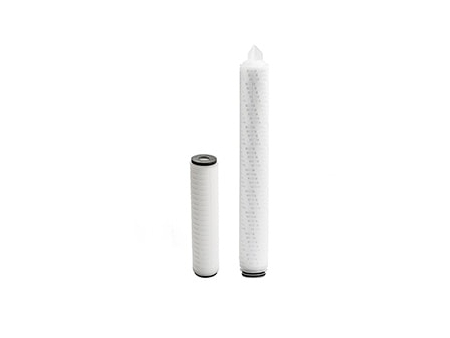

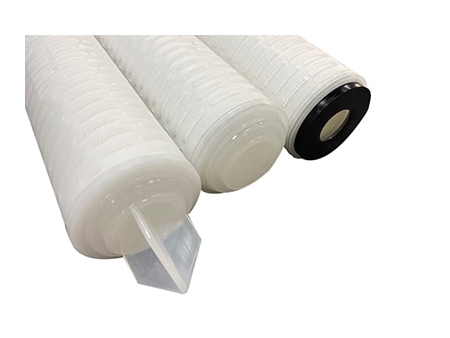

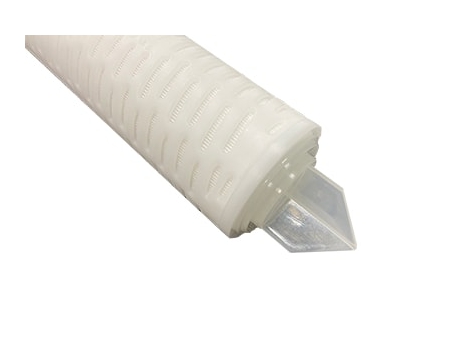

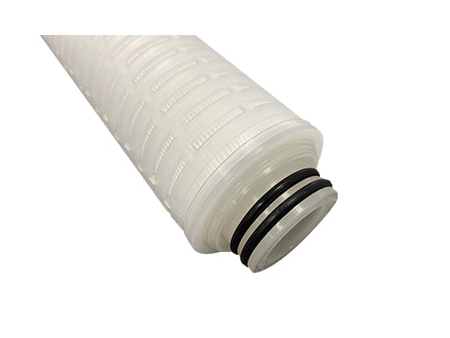

Pullner presents the innovative high dirt holding pleated filter cartridges, designed for demanding industrial filtration applications. Crafted with a multi-layer nanofiber structure and a multi-granular pore size design, these pleated filter cartridges excel at handling high-suspension particles, colloids, and high-viscosity liquids.

Materials of Construction
Filter Medium Polypropylene
Drainage Polypropylene
Center Rod/Housing/End Cap Polypropylene
Specifications
Length 5", 10", 20", 30", 40"
Micron Rating 0.5~90μm
Filtration Area 0.4~0.7m²
Outside Diameter 68.5mm
Max. Forward Pressure Drop 4bar/21℃
Max. Reverse Pressure Drop 2.4bar/80℃
Max. Operating Temperature 80℃
Sterilization Temperature 121℃/30min
Hot Water Sanitization 85℃/30min
Filtration Efficiency
HPPV >95% >98% >99.8% >99.9%
0.5μm 0.3 0.5 0.65 0.8
0.8μm 0.65 0.8 1.0 1.2
1.0μm 0.8 1.0 1.2 1.5
1.5μm 1.2 1.5 2.0 3.0
Applications
  • Prefiltration for reverse osmosis systems, seawater desalination, and various process water treatments.
  • Power plant condensate water filtration and hot water recycle.
  • Filtration in bottling water, high-fructose, edible oil, soft drinks, and dairy industries.
  • Petrochemical processes, refineries, paint coatings, diesel, and dye filtration.
  • Raw material, solvent, and water filtration in the biopharmaceutical industry.
  • Microelectronics plant process water filtration.
