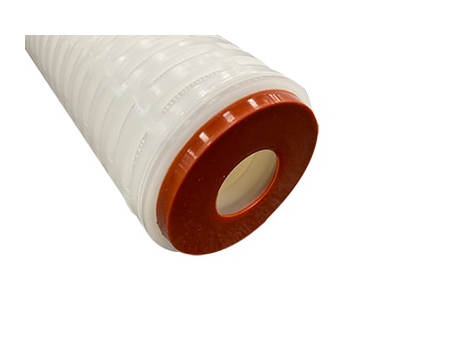

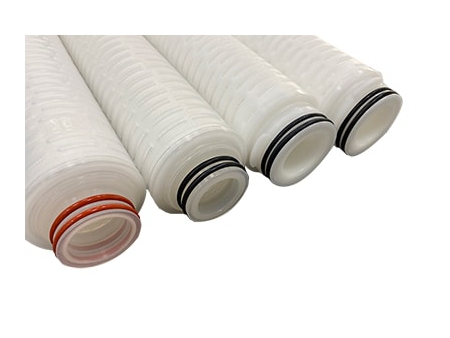

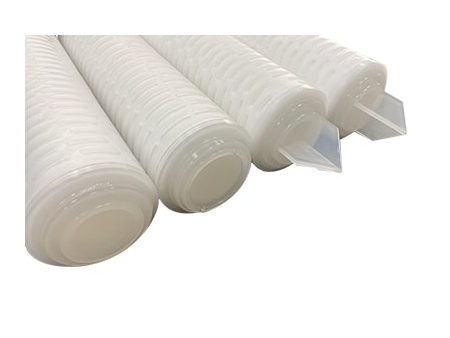

PP Pleated Filter Cartridge for High Viscosity Fluids, PPM Series

Request a Quote

View All: http://filtrationcartridge.com/2-4-pp-pleated-filter-cartridge-for-high-viscosity-fluids.html

This pleated filter cartridge is engineered to deliver superior filtration performance for high-viscosity fluids. Through a unique combination of deep-layer filtration technology and a pleated structure, these cartridges ensure both high dirt holding capacity and stable filtration efficiency, making them an ideal choice for demanding filtration environments, suitable for handling high-suspension particles, colloids, and high-viscosity liquids.

Materials of Construction

Filter Medium	Polypropylene
Drainage	Polypropylene
Center Rod/Housing/End Cap	Polypropylene

Specifications

Length	5", 10", 20", 30", 40"
Micron Rating	0.5~5.0μm
Outside Diameter	68.5mm
Micron Rating	0.1~20μm
Max. Operating Temperature	80℃
Max. Operating Pressure (inside to outside flow)	4bar/21℃
Max. Operating Pressure (inside to outside flow)	2.4bar/80℃
Filtration Area	0.4~0.7m²

Chemical Compatibility

PPM	> 95%	> 98%	> 99.8%	> 99.9%
0.3pm	0.15	0.22	0.25	0.3
0.5pm	0.22	0.4	0.45	0.5
1.0pm	0.5	0.65	0.8	1.0
5.0pm	1.5	2.0	2.5	5.0

Note: R (Resistant); NR (Not Recommended); LR (Limited Resistance)

Applications

Prefiltration for reverse osmosis systems, seawater desalination, and various process water treatments.
Power plant condensate water filtration and hot water recycle.
Filtration in bottling water, high-fructose, edible oil, soft drinks, and dairy industries.
Petrochemical processes, refineries, paint coatings, diesel, and dye filtration.
Raw material, solvent, and water filtration in the biopharmaceutical industry.
Microelectronics plant process water filtration.
