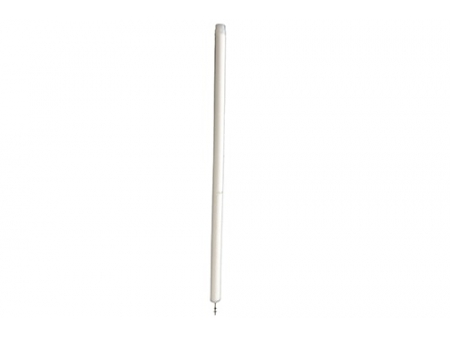

PP Pleated Filter Cartridge for Condensate Polishing, PHFZ Series
Request a Quote
View All: http://filtrationcartridge.com/7-2-pp-pleated-filter-cartridge-for-condensate-polishing.html
The PP pleated filter cartridges are specially designed for condensate polishing in power plants. Our filter cartridges boast a heat welded structure, ensuring repeated backwash without secondary contamination or medium shedding. Elevate your condensate polishing process with the reliability of our pleated filter cartridges.
Materials of Construction
| Outside Diameter | 69mm/65mm |
| Length | 70"，60" |
| Filter Medium | Polypropylene |
| Central Frame | Reinforced Polypropylene |
Specifications
| Max. Operating Temperature | 85℃ |
| Max. differential pressure | 3.0bar@65℃ |
| Flow Rate | 3.5~4.5 m³/h (design) 3.9 m³/h (recommended) |
| Filtration Area | 6.5 m2 |
| Micron Rating | 1~10μm |
| Connection Thread Sizes | 1 1/2"~12, M33x1.5, M33x2 |
| Tail Screw Sizes | M6, M8, M10, 3/8 |
| Max. Reverse Differential Pressure | 2.1bar |
| Inlet Water Quality | ＜2000ppb |
Applications
- Pre-treatment for reverse osmosis filtration systems and seawater desalination
- Condensate polishing systems for power plants
- Impurity removal in paint processing, coating, petrochemical, refining, microelectronics, film, fiber, and resin industries
