For special requirements for high frequency CCL, LEAD has taken creative measures to optimize its return line in order to achieve wholly automatic pressing of the CCL board.

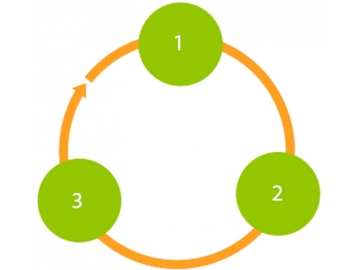

Manufacturing process

Automatic stack-up
Automatic breakdown
Automatic returning of steel plate

Features

Custom designing for workshop
LEAD can custom design this equipment for customer workshops.

High efficacy
A high efficacy can be achieved by on-line cutting of the copper foil.

Low energy consumption
In order to decrease the energy consumption and optimize the control system, the capacity of every unit is calculated and custom designing is essential.

Components

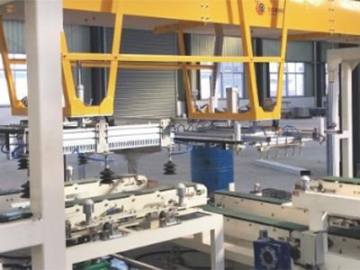

Suction hoist for automatic stack-up

Uses
Automatic arranging of plates

Parameter

Stackup mode: automatic stack-up of aluminum foil, copper foil, prepreg, aluminum foil
Stackup accuracy: ±1.5mm
Stackup speed: 15 seconds/layer

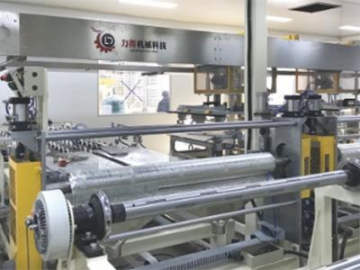

Cutting machine

Uses
Copper foil cutting

Parameter

Cutting accuracy: length error±0.5mm/m, diagonal error±1mm/m
Thickness: 1/3~2OZ
Cutting mode: automatic cutting
Cutting speed: 0~60m/min

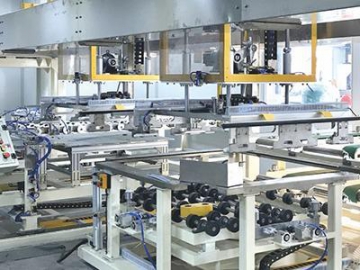

Suction hoist for automatic breakdown

Uses
The Suction hoist can separate steel plate and CCL

Parameter

Breakdown mode: manipulator separating;
Separating speed: 15 seconds/layer;
Intelligent control: achieve remote monitoring, reserve PLC interface and ERP interface

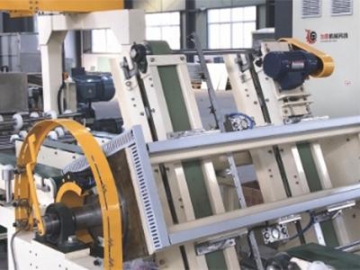

Automatic overturn

Uses
The Suction hoist can flip steel plate over

Parameter

Double check the steel plates, and eliminate any problematic ones in order to lower the reject rate.
Improve the quality by preventing the CCL board from coming into contact with a steel plate exposed to kraft paper
Avoid uneven force on both sides of steel plate

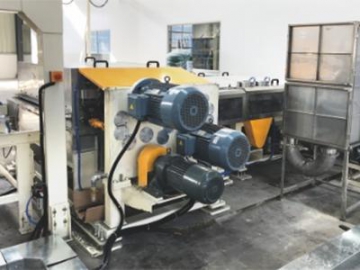

Steel Plate Cleanser

Uses
Cleaning and drying steel plate

Parameter

Speed up to 45m/min;
Four or two cleaning brush;
Cleaning water is high pressure water, and can achieve cyclic utilization after filtering;
Hot drying of fan, or air drying with linear high pressure
Coated by release agent.
