Automatic Vertical Wire Coil Packaging Line

Request a Quote

View All: http://coilpackaging-en.com/2-2-automatic-vertical-wire-coil-packaging-line.html

SA-LS-35

Vertical coil wrapping machine with automatic coil handling system for packaging, weighing and labeling of wire rod coils and slit coils

Packaging speed 1min/pc
Inner diameter of coil 520mm (±20mm)
Outer diameter of coil 700mm (±20mm)
Coil length 350mm

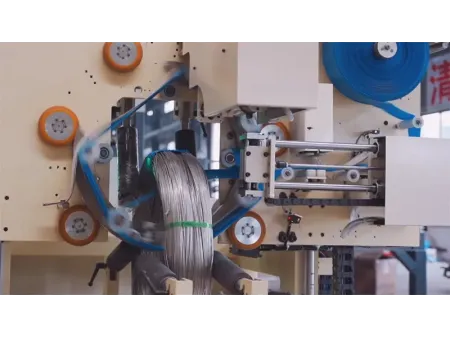

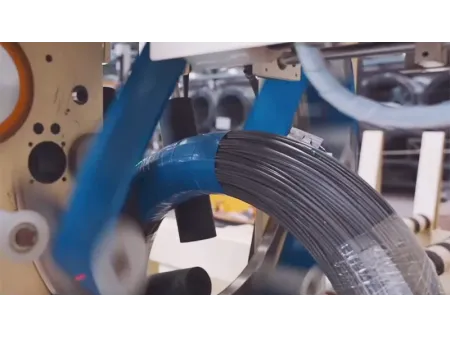

The vertical wire coil packaging line is a high-efficiency solution designed to improve both speed and space utilization in modern coil packaging operations. Compared to the SA-LS-400 vertical coil wrappers, this coil packaging line features two integrated wrapping machines and a single infeed station, increasing packaging speed from 1.5 minutes per coil to just 1 minute per coil.

It features automatic coil handling system for packaging, weighing and labeling of wire rod coils and slit coils. Its vertical structure minimizes floor space usage, making it ideal for factories with limited room while still delivering automated packaging, weighing, and labeling functions for wire rod coils and slit coils.

Transforming Coils: From Exposure to Protection

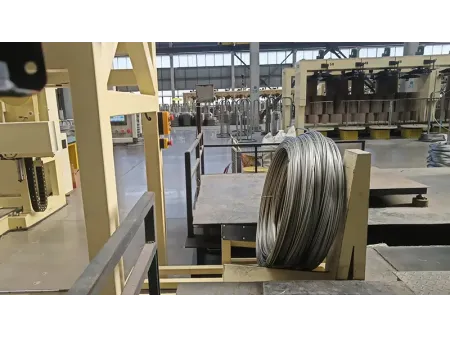

Before packaging

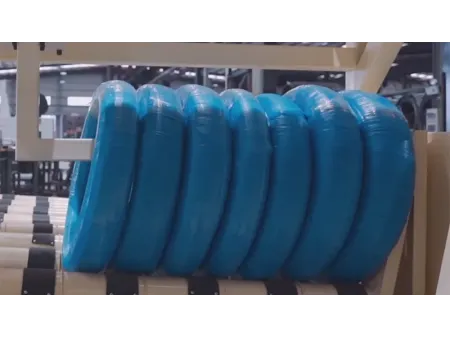

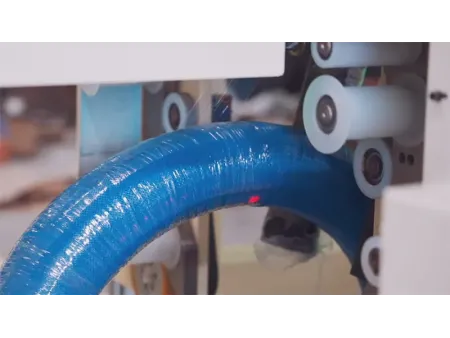

After packaging

Specifications

Dimensions (L×W×H): 10×7×4m
Inner diameter of coil: 520mm ±20mm
(machine can be designed based on the required size of customer's products)
Outer diameter of coil: 700mm ±20mm
(machine can be designed based on the required size of customer's products)
Coil length: ≤350mm
Weight: ≤150kg
Packaging speed: 1min/pc
Voltage: AC380V 50Hz
Total power: 25kW
Air pressure: ≥0.6MPa
