Automatic Vertical Wire Coil Packaging Line
Request a Quote
SA-LS-400
Semi-auto vertical coil wrapper with automatic coil handling system for packaging, weighing and labeling of wire rod coils and slit coils
- Packaging speed 1.5min/pc
- Inner diameter of coil 480/750mm
- Outer diameter of coil 700/1100mm
- Coil length 200/350/250/170mm
The vertical wire coil packaging line combines a semi-automatic strapping unit with an automated storage system, offering a space-saving and intelligent solution for wire rod coils and slit coils. Operators simply input the coil dimensions into the system, and the wrapping machine automatically adjusts to match the required coil size for accurate and efficient wrapping. The coil wrapper also includes automated weighing and customizable label printing, with all label data automatically uploaded to your ERP or MES system for real-time data sharing and production traceability.

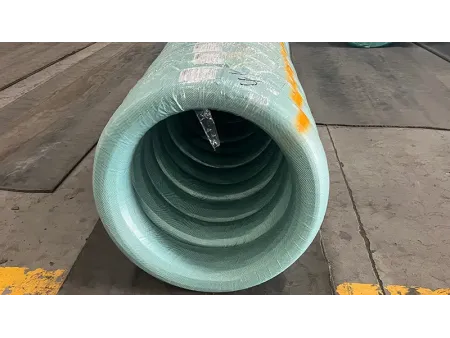

Transforming Coils: From Exposure to Protection

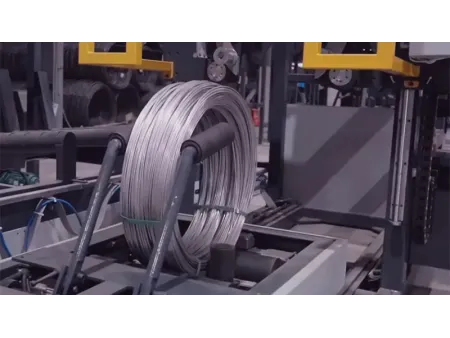

Before packagingAfter packagingSpecifications
- Dimensions (L×W×H): 6.2×8.3×3.8m
- Inner diameter of coil: 480/750mm
(machine can be designed based on the required size of customer's products) - Outer diameter of coil: 700/1100mm
(machine can be designed based on the required size of customer's products) - Coil length: 200/350/250/170mm
- Weight: 100-300kg (other models are available for weight below 100kg)
- Packaging speed: 1.5min/pc
- Voltage: AC 220/380V, 50/60Hz
- Total power: ≤8kW
- Air pressure: ≥0.6MPa
