Closed Circuit Axial Piston Motor, HMF Series

Request a Quote

View All: http://hydraulic-component.com/2-2-closed-circuit-axial-piston-motor-hmf-series.html

HMF Series

Closed Circuit Axial Piston Motor

Fixed displacement hydraulic motor for closed loop operation

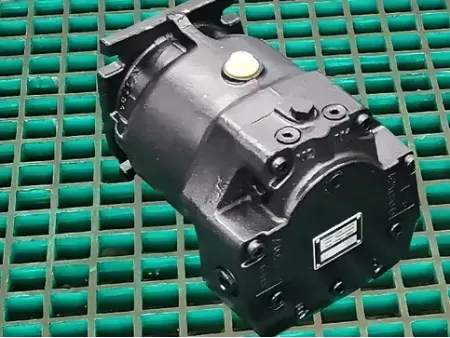

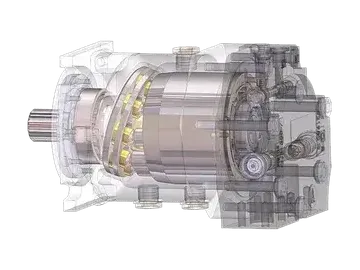

The HMF closed circuit axial piston motor is designed to deliver enhanced performance and flexibility, building on the trusted TM89 motor. With adjustable high-pressure relief options of 35 MPa and 42 MPa, this motor can be configured with two different components within the same housing, offering you two displacement choices. Plus, the standardized mounting collar and optional spline connection give you flexibility in installation.

Key Parameters

Displacement (ml/r): 30, 50, 70, 90, 110, 130

Rated pressure (Mpa): 35

Max. pressure (Mpa): 38

Typical Applications

Hydraulic Drive Forklifts
Skid Steer Loaders
Agricultural and Forestry Machinery
Any closed-circuit drive machinery

Features

High Output Speed: Delivers up to 3800 r/min to meet demanding applications.
Simplified External Design: Integrated rear cover with protection and wash valves, reducing external setup.
Universal Mounting Compatibility: International standard design for the mounting flange, shaft, and ports ensures easy interchangeability.

Ready to take your equipment to the next level with a powerful, adaptable Closed Circuit Axial Piston Motor? today to explore how the HMF Series can be tailored to your exact needs.

Technical Data

Model
Displacement	Rated displacement		30	50	70	90	110	130
Displacement	Max. displacement	ml/r	30	50	70	90	110	130
Rotation Speed	Max. continuous working speed (full load)	r/min	3200	3200	3200	3000	2700	2700
	Max. working speed (instantaneous)	r/min	3800	3500	3200	3200	2900	2900
	Rated speed	r/min	2500
	Min. continuous working speed	r/min	500
Pressure	Rated pressure	Mpa	35
	Max. pressure (instantaneous)	Mpa	38
	Continuous working pressure (△P)	Mpa	30
	Max. permissible housing pressure (absolute)	Mpa	Constant 0.25 Peak value 0.5
Torque	Continuous output torque (under continuous working pressure)	Nm	143	248	334	430	526	621
Torque	Max. output torque	Nm	167	278	390	502	613	725
Power	Max. power	kW	56	93	131	157	180	212
Temperature	Permissible housing temperature	℃	-40 to 50
Temperature	Max. working temperature of oil tank	℃	80
Weight	Hydraulic motor weight (without hydraulic oil)	kg	22	23	33	34	36	38

Download Technical Drawings (PDF)

Closed Circuit Axial Piston Motor HMF30(50)
461KB
Closed Circuit Axial Piston Motor HMF110(130)
454KB
Closed Circuit Axial Piston Motor HMF70(90)
550KB
