Closed Circuit Axial Piston Motor, HMFC Series

Request a Quote

View All: http://hydraulic-component.com/2-5-closed-circuit-axial-piston-motor-hmfc-series.html

HMFC Series

Closed Circuit Axial Piston Motor

Fixed displacement hydraulic motor for closed loop operation

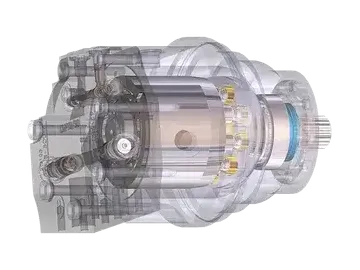

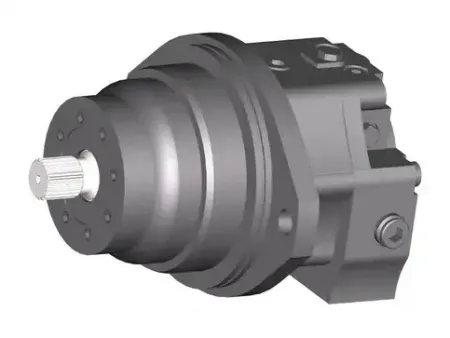

The HMFC closed circuit axial piston motor is a fixed displacement motor specifically designed to pair seamlessly with planetary gear reducers. Thanks to its cartridge-style connection, it offers easy installation and boosts overall system efficiency. Its compatibility with closed-circuit systems, combined with compact structure, stable performance, high efficiency, and low noise, makes it an ideal power solution for applications in construction machinery, metallurgy, mining, and more.

Key Parameters

Displacement (ml/r): 30, 50, 70, 90, 110, 130

Rated pressure (Mpa): 35

Max. pressure (Mpa): 38

Typical Applications

Construction Machinery: Excavators, loaders, cranes...
Mining Equipment: Mining machinery, transport equipment...
Agricultural Machinery: Tractors, harvesters...

Features

Compact Design: Cartridge-style connection saves space and simplifies installation.
Stable Performance: Proven technology ensures reliable, long-lasting performance.
High Efficiency: Optimized design reduces internal leakage and increases system efficiency.
Low Noise: Smooth operation with low noise levels for a better work environment.
Customizable Options: Available in various displacements, pressure levels, and connection types to suit specific requirements.

Interested in a motor that combines efficiency, reliability, and easy installation? to explore how the HMFC Series can be tailored to meet your specific needs.

Technical Data

Model
Displacement	Rated displacement	ml/r	30	50	70	90	110	130
Displacement	Max. displacement	ml/r	30	50	70	90	110	130
Rotation Speed	Max. continuous working speed (full load)	r/min	3200	3200	3200	3000	2700	2700
	Max. working speed (instantaneous)	r/min	3800	3500	3200	3200	2900	2900
	Rated speed	r/min	2500
	Min. continuous working speed	r/min	500
Pressure	Rated pressure	Mpa	35
	Max. pressure (instantaneous)	Mpa	38
	Continuous working pressure (△P)	Mpa	30
	Max. permissible housing pressure (absolute)	Mpa	Constant 0.25 Peak value 0.5
Torque	Continuous output torque (under continuous working pressure)	Nm	143	248	334	430	526	621
Torque	Max. output torque	Nm	167	278	390	502	613	725
Power	Max. power	kW	56	93	131	157	180	212
Temperature	Permissible housing temperature	℃	-40 to 50
Temperature	Max. working temperature of oil tank	℃	80
Weight	Hydraulic motor weight (without hydraulic oil)	kg	30	31	37	38	45	46

Download Technical Drawings (PDF)

Closed Circuit Axial Piston Motor HMFC30(50)
398KB
Closed Circuit Axial Piston Motor HMFC110(130)
804KB
Closed Circuit Axial Piston Motor HMFC70(90)
494KB
