The CNC mill machine is used to carry out milling and drilling operations with only a single spindle. It is usually equipped with a tool magazine with a 12 tool capacity, which meets most tool requirements during processing.

CNC mill machines produced by Tying CNC

XX-axis travel:500mm
Y-axis travel:600mm
Z-axis travel:230mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:500kg
Spindle speed (standard): 18000/24000/30000 rpm
2. X-axis travel:700mm
  Y-axis travel:800mm
  Z-axis travel:280mm
  Positioning accuracy:±0.005/300mm
  Maximum weight on table:500kg
  Spindle speed (standard): 18000/24000/30000 rpm
2. X-axis travel:8200mm
  Y-axis travel:1200mm
  Z-axis travel:3500mm
  Positioning accuracy:±0.005/300mm
  Maximum weight on table:900kg
  Spindle speed (standard): 18000/24000rpm

Samples machined by CNC mill machine

Hardware parts by CNC mill machine

Features of CNC mill machine

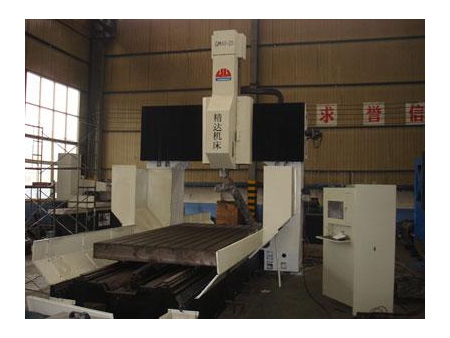

This CNC mill machine features a gantry structure, with a stronger base and column to ensure machine operation remains stable.
The mill machine uses a fully enclosed enclosure with an interior exhaust system, which reduces oil mist generated during high speed machining.
The spindle is equipped with an oil cooler to ensure the spindle performance is not impacted by excessive heat.

For each of these components, the control system can be replaced according to customer requirements, and our tool magazine features a higher capacity. Please click on each for more detailed information.
