This CNC drilling and milling machine is equipped with 3 spindle speeds: 18000r.p.m, 24000r.p.m and 30000r.p.m. Users can choose the required spindle speed based on their specific needs, and thus, improve the working efficiency. This machine has a size of 2300x2400x2550mm and a weight of 4200kg.

Parameters
Model EMC-870
Stroke X-axis travel (mm)
Y-axis travel (mm)
Z-axis travel (mm)
700/800/280
Distance from spindle nose to table center (mm) 50-400
Worktable Worktable area (mm) 800x700
Maximum weight on table (kg) 500
T-slot (width – number of slot x spacing) (mm) 5-18
Spindle Standard spindle speed (r.p.m) 18000/24000/30000
Spindle taper ER32/BT30
Spindle motor power (KW) 5.5/7.5
Feed Triaxial rapid feed (mm/min) 16000
Triaxial cutting feed (mm/min) 1-6000
Others Positioning accuracy (mm) ±0.005/300
Repeatability (mm) ±0.003/300
Machine weight (kg) 4200
Machine dimension (mm) 2300x2400x2550
Parts of CNC mill machine

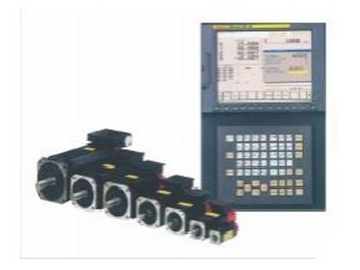

  • Control system and motor

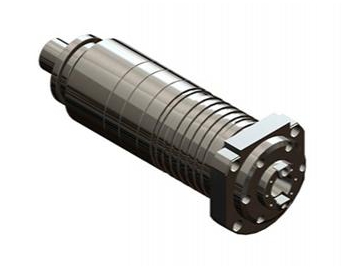

  • Direct drive motor spindle

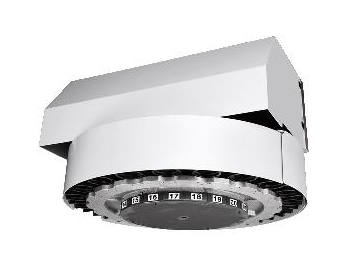

  • Turntable type tool magazine, capable of holding 12 tools

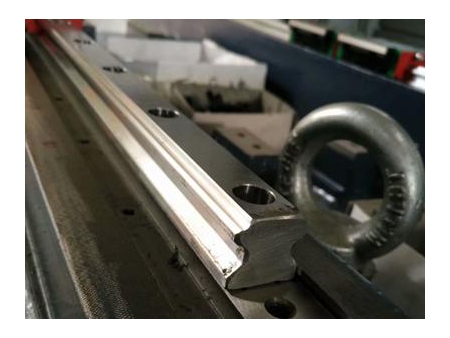

  • Linear guideway runs in a stable manner with a high machining precision
