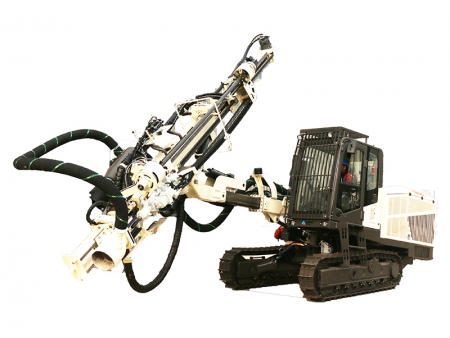

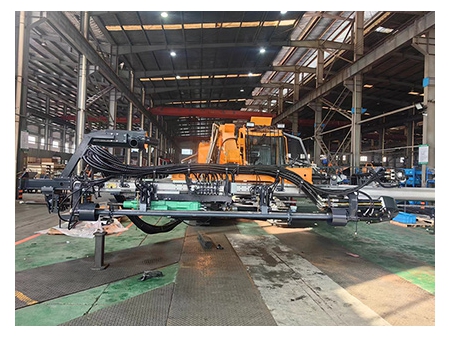

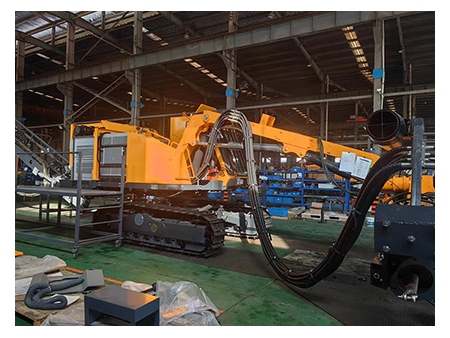

Surface Top Hammer Drill Rig, KI511
Request a Quote
Hydraulic drilling rig
| Dimensions and weight | |
| Transport dimensions (L×W×H) | 11100×2520×3320mm |
| Weight | 15000kg |
| Articulated drill boom and chassis | |
| Ground clearance | 420mm |
| Frame rotation | 120° 60° |
| Drilling coverage area | 26.5m² |
| Oscillation angle of track | 10°up, 10°down |
| Tramming speed | 0-3.5km/h |
| Gradeability | 30° |
| Traction | 120kN |
| Power unit | |
| Engine | Caterpillar C7.1 |
| Quantity of cylinders | 6 |
| Output power | 186 kW/ 2200 rpm |
| Drive type | Gearbox |
| Hydraulic pump | 2×variable displacement piston pump 2×gear pump |
| Screw air compressor | Zhejiang Kaishan |
| Air delivery | 9.6m3/min |
| Air pressure | 10bar |
| Fuel tank | 350L |
| Dust collecting system | |
| Capacity of dust collector and vacuum degree | 23m3/min; 1000mm water column |
| Filter element/material | 13/fiber |
| Filtering area | 10m² |
| Power of hydraulic motor | 12kW |
| Hydraulic rock drill (drifter) | |
| Model | HC170RP |
| Impact power | 23.4kW |
| Impact pressure | 180bar |
| Impact frequency | 41Hz |
| Maximum torque | 1590Nm |
| Maximum rotation pressure | 200bar |
| Maximum rotation speed | 130rpm |
| Shank lubrication | Air/oil mist |
| Fuel consumption of lubrication | 15drops/min 15drops/min |
| Drilling hole diameter | 76 - 127mm |
| Hydraulic system | |
| Travelling, drilling | Load sensing |
| Filter fineness | 10μm |
| Cooling capacity | Ambient temperature: 50° |
| Hydraulic oil tank | 200L |
| Drill boom, feed beam and rod changer | |
| Lifting of drill boom | 83° |
| Swing of drill boom | 87° |
| Swing angle of beam | -56°/ 52°; - 20°/94 ° |
| Carriage inclination | 125° |
| Compensation stroke | 1353mm |
| Stroke of rock drill | 4150mm |
| Maximum feed force | 19kN |
| Feed method | Motor-roller chain |
| Depth of economical drilling | 25m |
| Quantity of rods | 6 1 |
| Model of drill rod | T45×3660/T51×3660 |
| Thread lubrication of drill rod | Standard |
| Control system | |
| Travelling | Hydraulic pilot remote control (optional) |
| Drill boom | Hydraulic direct control |
| Rock drilling | Pilot control (electric/hydraulic) |
| Opening control | Stepless |
| Impact control | Control of shock pressure |
| Anti-jamming | Hydraulic |
| Voltage | 24V, DC |
| Cab | |
| Safety cab | Meet the requirements of FOPS and ROPS |
| Indoor noise level | 85decibels |
| Control function | Drilling, travelling, movement of drill boom and rod changer |
| Seat | Adjustable |
| Air-conditioning | Standard heating and cooling |
| Entertainment | Radio MP3 |
| Item | Name | Brand | Country |
| 1 | Diesel engine | Caterpillar | USA |
| 2 | Hydraulic oil cylinder | Waco | Germany |
| 3 | Hydraulic main pump | Sauer Danfoss | USA |
| 4 | Walking motor | Eaton | USA |
| 5 | Oil tube | Eaton | USA |
| 6 | Controller | EPEC | Finland |
| 7 | Rotary motor | Hesmor | Germany |
| 8 | Hydraulic rock rill | Montabert | France |
| 9 | Hydraulic main valve | Sauer Danfoss | USA |
| 10 | Cartridge valve | Rexroth | USA |
| 11 | Air valve | Norgren | UK |
| 12 | Air filter | Fleetguard | USA |
| 13 | Screw air compressor | Kaishan | China |
| 14 | Swing oil cylinder | MOVECO | Italy |
| 15 | Distributor and sensor | IFM | Germany |
| 16 | Hydraulic filter | Hydac | USA |
| 17 | Main electrical components | Schneider | Germany |
| 18 | Main screen | IFM | Germany |
- The surface top hammer drill rig has a frame with 0-180 degree rotation capability, enabling the coverage area of rock drilling to reach 26.5m² and making it versatile for various working conditions;
- KAISHAN air compressor with air delivery of 9.7m3/min and pressure of 10bar is used in the surface top hammer drill rig, ensuring energy saving and environmental protection;
- The control of drill rig travelling, track leveling and chassis rotation can be carried out outside the cab through a remote control;
- The surface top hammer drill rig is equipped with T45/T51 shank allowing for drilling vertical, inclined and horizontal blast holes of 76-127mm diameter; It can realize economical drilling with drill depth of up to 25 meters;

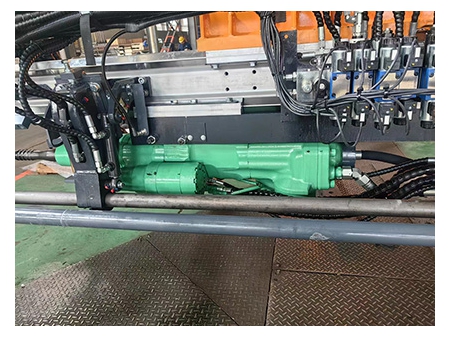

- Montabert hydraulic drifter is adopted, with impact power of 23.4kW and torque of 1590Nm;
- Anti-jamming system improves the drilling rig's adaptability to various difficulties in drilling operation;
- The surface top hammer drill rig has an anti-fall device that prevents drill rods from falling to the ground; Rod storage capacity is of 6 1 rods, and the rod changer allows one-key rod changing for fast and easy operation;
- Dual-speed traveling system offers high driving speed and powerful climbing capacity, and the chassis has leveling mechanism and is coupled with additional hydraulic stabilizer legs to provide greater stability in different terrains;
- Automatic lubrication system with electromagnetic pulse ensures that the drilling tools are fully lubricated;
- All key components such as diesel engine, hydraulic pump, valve, motor and control unit are from world's renowned brands to guarantee the reliable performance;
- Dry dust collector is used to keep drilling dust to a minimum;
- Ergonomic operator's cab is configured with air conditioner, LCD display, pilot control and automatic operation system, creating a comfortable, safe and eco-friendly working environment for the operator;
