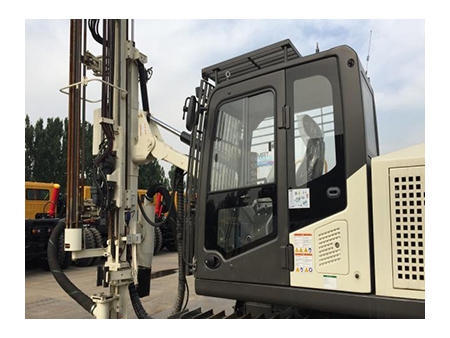

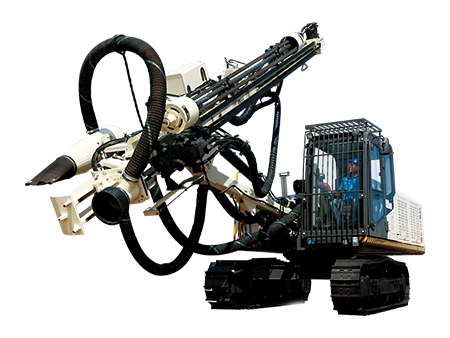

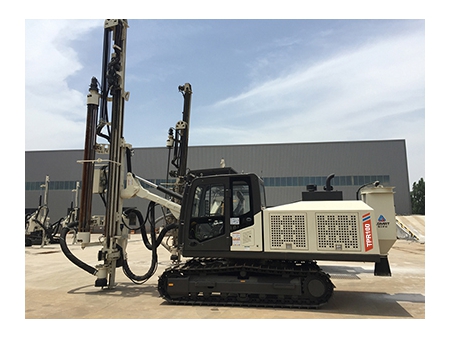

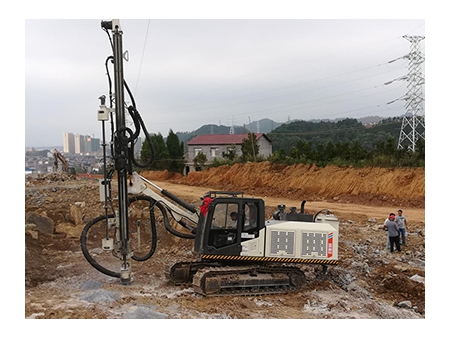

The TPR100 is a powerful and versatile drill rig that provides full hydraulic control in a surface setting. It utilizes an internal combustion engine and can rotate up to 360°, as well as provide cab control of the connecting and disconnecting rods and air conditioning.

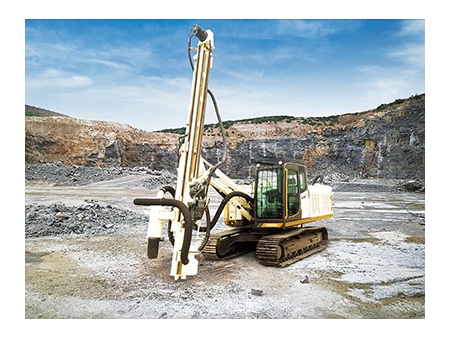

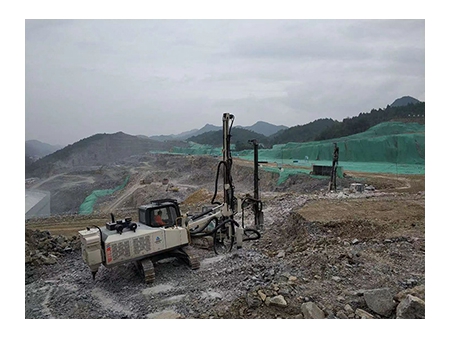

The TPR100 is ideal for medium-sized quarries and surface mining due to its efficient and reliable Sandvik LD100 rock drill and drilling control system along with its quality anti-jamming design and mechanical rod changer. This combination ensures there is maximum performance and accuracy.

Features
  • High Productivity
    The Surface Top Hammer Drill Rig guarantees high productivity by incorporating the rock drill LD100 from Sandvik, which ensures impressive penetration rates.
  • Enhanced Drilling Coverage
    With its full angles rotation capability, the drill rig provides extensive drilling coverage, allowing for the drilling of multiple holes in a single setup.
  • Cost Reduction
    The drill rig employs a proven load-sensing control system and compressor management system to achieve energy savings and reduce operational costs.
  • Dependable Reliability
    The rig features carefully selected hydraulic and electric components known for their exceptional performance and reliability in demanding work environments.
  • Convenient Maintenance
    The drill rig's well-designed layout enables easy ground-level daily maintenance, simplifying the upkeep process.
  • Safety and Environmental Focus
    The TPR100 model prioritizes safety and the environment by incorporating safety devices and a dust collection system, aligning with Sandvik's commitment to "Safety first" and an "Environment-friendly" culture.
Technical Parameters
Key Features
Hole diameter 76-102 mm
Optimum hole diameter 89 mm
Rock drill and power HL650; 18kW
Control system THC700 load sensing system
Engine power 154kW@2200rpm
Overall dimensions 9585 mm*3005 mm*3440 mm
Total weight 14260 kg
Ambient temperature -10/ 45
Hole Drilling Unit
Boom type Single straight boom
Boom reach (Max.) 4000 mm
Boom lifting angle -10/ 45°
Feed beam Made using steel
Feed type Chain feed
Max. rotary torque 1355 Nm
Tubing reel Standard
No. of drill rods 6 1 (standard)
Standard drill rod T45 quick-change drill rod
Optional drill rod T51 quick-change drill rod
Max. length of the first rod 4250mm
Standard rod length 3660mm
Length of feed beam 6700 mm
Feed beam compensation 1200 mm
Rock drill travel 4400mm
Push & pull force 20 kN
Max. feed speed 0.8m/s
Collaring height 1.2m
Oscillation angle of feed beam -30°/ 95°
Horizontal directional drilling Yes
Movable dust collector Standard
Carriage
Carriage type 360° rotating
Max. travel speed 3,5 km/h
Grouser track shoe type Single bar type
Gradeability 30°
Work lights 4 front, 2 back

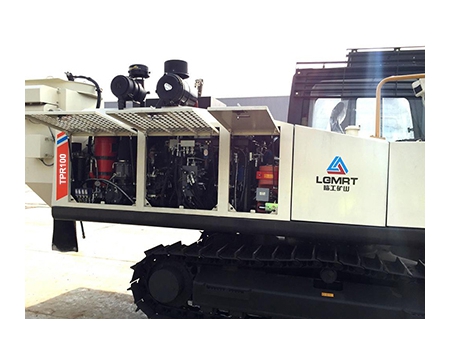

Power Pack
Engine emission Stage III
Engine brand Cummins QSB5.9
Engine power 154kW@2200RPM
Compressor brand Gardner Denver (original from Finland)
Compressor model Enduro 12
Air pressure 7 bar
Air displacement 6 m3/min

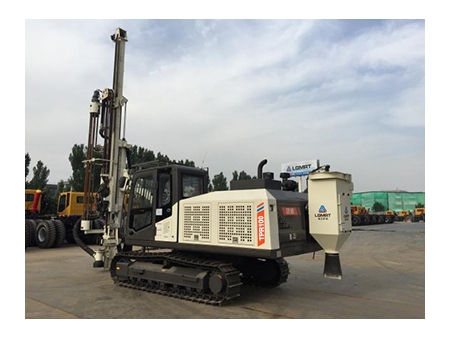

Dust Collector
Capacity 23 m3/min
Filtration area 10.4 m2
