Solar Glass Washing Machine

Request a Quote

Website: http://glassmachine-en.com/3-1-solar-glass-washing-machine.html

Glass Processing Equipment

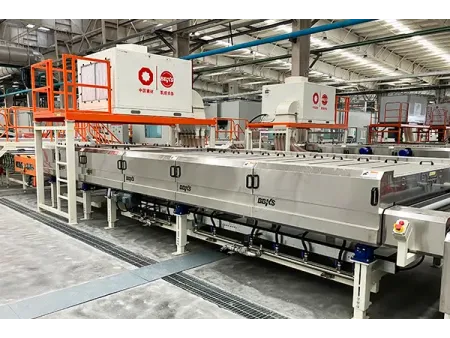

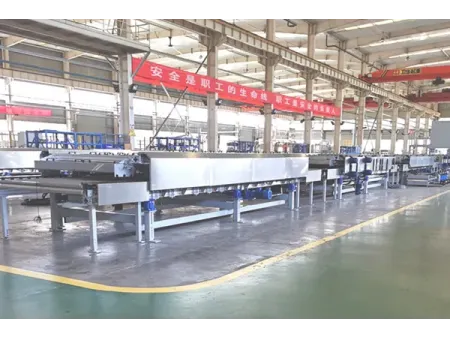

Automatic horizontal glass washer for washing photovoltaic solar glass

In glass processing lines, the washing machine ensures that glass substrates are thoroughly cleaned and dried before entering downstream equipment. This guarantees that the glass meets the strict requirements of subsequent processes. We specialize in providing washing machines engineered for photovoltaic solar glass, delivering outstanding cleaning and drying performance that supports higher efficiency and quality standards.

Power: 40-108kW
Working pressure: 0.6MPa
Processing accuracy: water droplet angle 10°
Max. speed: 45m/min
Glass sheet thickness: 1.4-4mm
Max. glass sheet size: 2500×1300mm
Min. glass sheet size: 1650×985mm

Advantages

Excellent drying performance
The glass washing machine uses an optimized air-knife drying system that ensures precise airflow distribution, significantly enhancing drying efficiency. A specially designed variable-diameter air knife prevents negative pressure at the inlet, ensuring uniform airflow across the entire surface.
Superior cleanliness
The cleaning system uses an innovative sectional spray design to improve water efficiency and enhance cleaning effectiveness. Anti-splash baffles prevent dirty water from being carried downstream, while an optimized horizontal and vertical arrangement of brush rollers further boost cleaning quality.
Reliable waterproof system
Both brush rollers and drive rollers feature double-seal waterproof protection. An internal recirculating drainage channel effectively guides leakage water back into the tank, ensuring smooth operation and reduced maintenance needs.
Enhanced safety
The lifting mechanism is equipped with dual lower-limit protection to prevent equipment damage from electronic component failure. The fan motor includes overcurrent protection, triggering an alarm or shutdown when load exceeds rated capacity.
Low noise system
The drying chamber features aerodynamically designed partitions and flame-retardant sound-absorbing cotton (5 cm thick). Together with an ultra-quiet fan system, these reduce operational noise by around 5% compared to conventional systems.
