7000W Traction Motor, PMDC Brushless Motor TR155B
Request a Quote
Your Motion
Application: electric forklift, electric vehicle, elevators, etc.
Features
Built to support demanding workloads, the traction motor pairs high load capacity with a compact, space-efficient design. Its refined construction ensures smooth, consistent power delivery suited for daily forklift operations.
Applications
It is well suited for various electric counterbalance forklifts, providing stable traction performance and reliable operation across different working environments.
Technical Specifications
| Model No. | TR155B |
| Matched Motor | PMSM Motor |
| Rated Voltage (V) | 72 |
| Rated Power (W) | 7000 |
| Rated Torque (N.m) | 20 |
| Rated Current (A) | ≤115 |
| No-load Current (A) | ≤10 |
| No-load Revolution (RPM) | 4500 |
| Rated Revolution (RPM) | 3400 |
| Rated Efficiency (%) | ≥90 |
| Working Cycle (min.) | S2-60 |
| Insulation Class | H |
| Protection Level | IP55 |

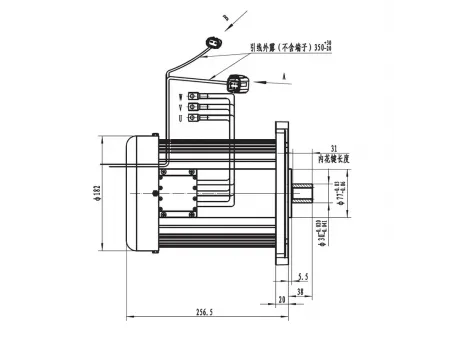

| Motor Length | 256.5 |
