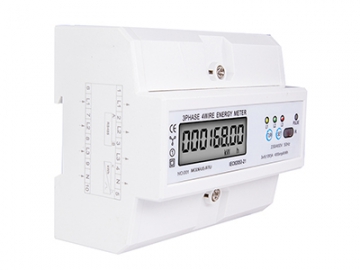

Three Phase Energy Meter, DTS8558A
Request a Quote
The multifunctional three phase energy meter automatically displays active energy, reactive energy, each phase voltage, each phase current, each phase power, each phase power factor, and frequency.
Specifications
- Power supply: three phase 3*230V/400V 50Hz
- Maximum current: 100A
- Voltage: 380V/400V
- RS485 function with protocol Modbus RTU
- Pulse frequency: 400imp / kWh
- Built-in RS485 port
- LED-backlit LCD display
- Pulse LED indicates working of meter.
- 35mm DIN rail installation
- Note: The two models are designed with RS485 Modbus RTU
