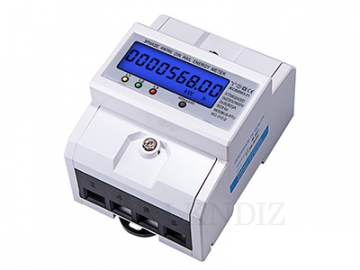

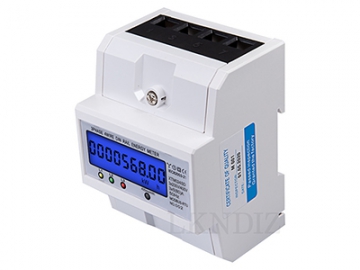

Three Phase Energy Meter, DTS8558
Request a Quote
Features
- The energy meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053 international standard of grade 1 or level 2 single-phase energy metering. It can directly measure active energy of the energy consumption in an accurate manner.
- 6 2 digits LCD display shows the total power consumption.
- It features high reliability, small volume, light weight, beautiful appearance, 35mm DIN standard guide rail installation, etc.
- It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti-electricity theft and long life.
- This energy meter is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase AC active electricity, which is specially used for fixed installation indoors at the environment temperature of -25 °C-55 °C, and relative humidity ≤ 95% (air without corrosive gas, dust, mold, salt fog, condensation, insect, etc.)

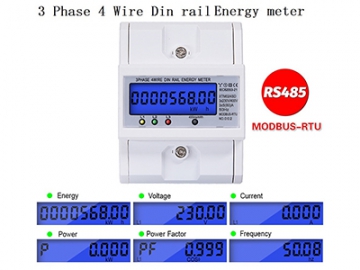

- Backlit LCD display
Specifications

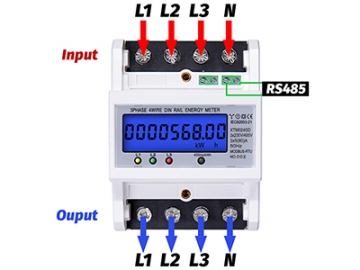

- Type: Three phase four wire energy meter
- Housing materiel: Metal ABS
- Reference voltage: 3 x 220/380(V), 3 x 230/400(V)
- Reference current: 3 x 5(80A)
- Accuracy level: 1.0
- Rated frequency: 50Hz
- Constant pulse: 400imp / kWh
- Display: LCD 6 2
- Power consumption: ≤2W, 10VA
- Starting current: 0.004Ib
- Operating temperature: -20 ~ 55°C
- Storage temperature: 25 ~ 70°C
- Operating voltage: 0.9-1.1 (rated voltage)
- Utmost voltage: 0.8-1.15 (rated voltage)
- Annual average humidity value: ≤75%

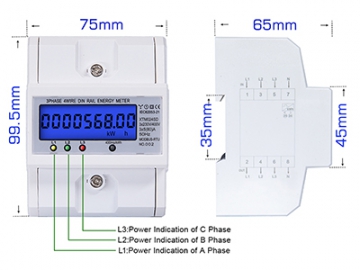

- Size: approx. 10.1 x 7.6 x 6.5cm / 3.97 x 2.99 x 2.55 inch
- Weight: 400g
