Features

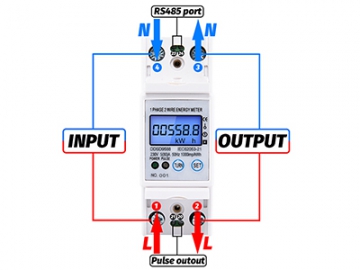

  • This energy meter comes with RS485 communication.

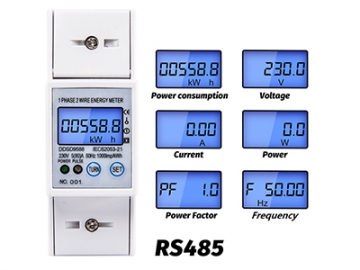

  • 5 1 digits LCD display shows the total power consumption.
  • It features high reliability, small volume, light weight, and beautiful appearance.

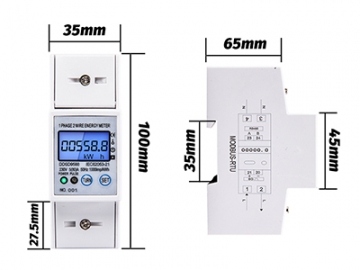

  • Standard 35mm DIN rail installation
  • It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti-electricity theft and long life.
  • This energy meter is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase AC active electricity, which is specially used for fixed installation indoors.
  • The electric meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053 international standard of grade 1 or level 2 single-phase energy metering. It can directly measure active energy of the energy consumption in an accurate manner.
  • Features Modbus RTU communications for metering
Specifications
  • Housing materiel: Metal ABS
  • Reference voltage: 230V AC
  • Reference current: 5(80)A
  • Rated frequency: 50Hz/60Hz
  • Constant pulse: 1000imp/kWh
  • Display: LCD 5 1
  • Power consumption: ≤2W, 10VA
  • Operating temperature: -10 ~ 50°C
