The straight side crank press provides 85 tons of pressing capacity with a 30 mm stroke and operating speeds of 150-500 strokes per minute. It features an 1100×750 mm worktable, 1100×500 mm slide, and an 800×150 mm scrap outlet, powered by a 22-kW main motor. Engineered for precision and reliability, it ensures efficient, continuous stamping of rotors, stators, and metal hardware components.
Samples of Stamped Parts
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping

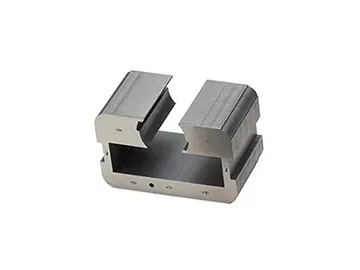

- Hardware component stamping

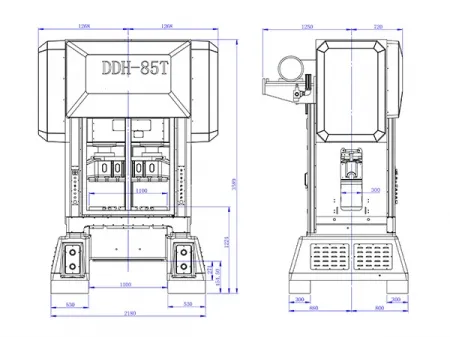

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 850 |
| Stroke (mm) | 30 |
| Stroke speed (spm) | 150-500 |
| Shut height (mm) | 330-380 |
| Worktable size (bolster) (mm) | 1100×750 |
| Slide area (mm) | 1100×500 |
| Slide adjustment (mm) | 50 |
| Scrap hole size (mm) | 800×150 |
| Motor (kW) | 22×4P |
| Machine weight (ton) | 18 |
