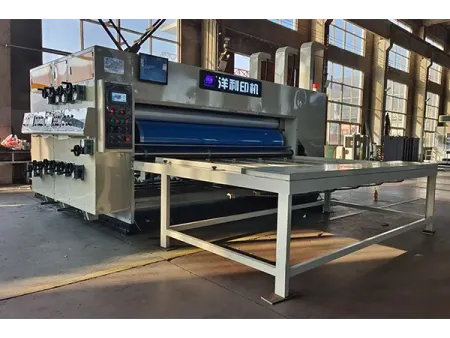

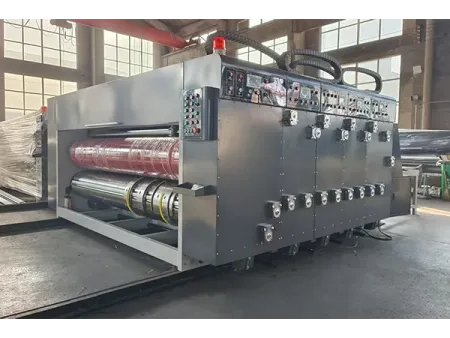

Printer Slotter Die Cutter with Chain Feeder, CZYL-F
Request a Quote
Corrugated Cardboard Converting Machines
The printer slotter die cutter with chain feeder is designed for stable performance and high-quality printing. It combines reliable mechanical design with automated control functions, making it a practical choice for medium- to large-scale carton production.
Features
- High Printing Quality: Produces clear printing with minimal color registration error and easy adjustments.
- Automated Functions: Includes electric separation, pneumatic locking, pneumatic plate lifting, and automatic inking for efficient operation.
- Flexible Phase Adjustment: Printing and slotting phases can be electrically adjusted by 360° for precision.
- Extended Gear Life: Equipped with an oil-immersion system to enhance gear durability and reduce wear.
Specifications of Servo Cardboard Die Cutting Machine
| Model | Max. paper feeding size (mm) | Effective printing area (mm) | Printing plate thickness (mm) | Min. paper feeding size (mm) | Working speed (sheets/min) | Printing roller diameter (mm) |
| | 900×2000 | 900×2000 | 4-7 | 220×500 | 80 | 304 |
| | 1200×2400 | 1200×2400 | 4-7 | 320×600 | 80 | 407 |
| | 1200×2800 | 1200×2800 | 4-7 | 320×600 | 60 | 407 |
| | 1400×2600 | 1400×2600 | 4-7 | 350×600 | 60 | 482 |
| | 1600×2800 | 1600×2800 | 4-7 | 380×600 | 60 | 536 |
| | 1800×3000 | 1800×3000 | 4-7 | 400×600 | 60 | 602 |
| | 2000×3500 | 2000×3500 | 4-7 | 450×800 | 60 | 702 |
| | 2500×4000 | 2500×4000 | 4-7 | 500×1000 | 60 | 802 |
