Automatic Dual-Lane Rotary Premade Pouch Packaging Machine Manufacturer

Automatic Dual-Lane Rotary Premade Pouch Packaging Machine

Request a Quote

View All: http://pouchpacking-en.com/2-dual-lane-rotary-premade-pouch-packaging-machine.html

Rotary pouch filling and sealing machine for packaging granules, powders and liquids into two premade pouches at once

Bag width
85 to 170mm
Filling range
10 to 1000g
Packaging speed
60 to 80 bags per minute

The WHD series dual-lane rotary premade pouch filling and sealing machine is designed for bags up to 170mm wide, offering a capacity twice that of the rotary model. It saves space and reduces the need for operators, making it ideal for packaging liquids, powders, and granules. It supports various pouch types, including flat bags, spout pouches, zipper bags, stand-up pouches, stand-up zipper pouches, shaped bags, and eight-side seal bags.

Applications

Our dual-lane rotary premade pouch filling and sealing machine is suitable for packing a variety of materials, including:

Liquids:

Powders:

Granules:

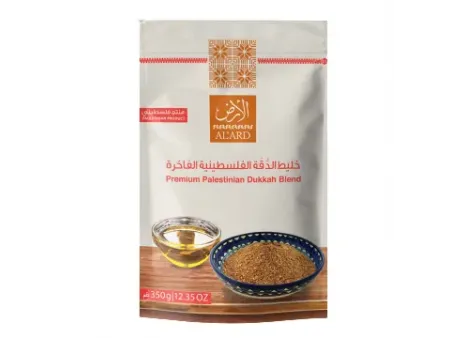

Spice packaging

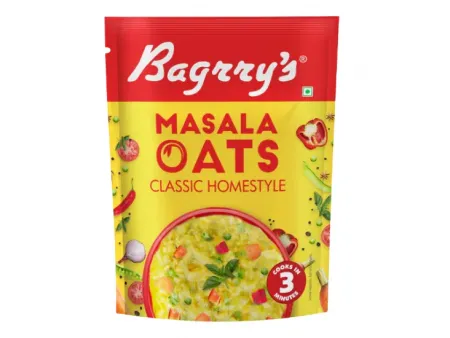

Oats packaging

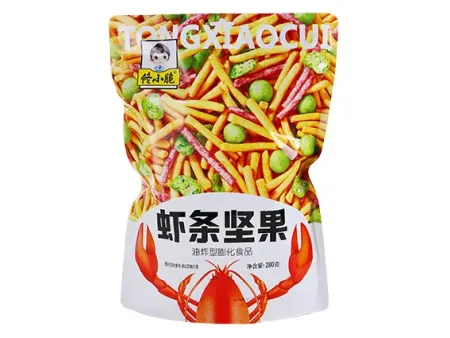

Snack packaging

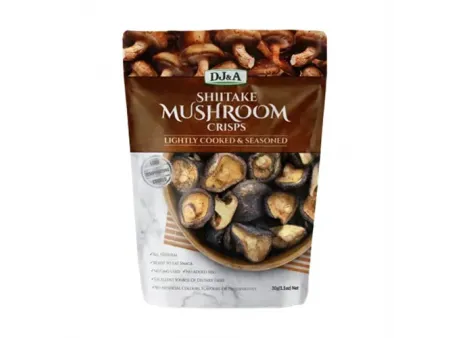

Dried mushroom packaging

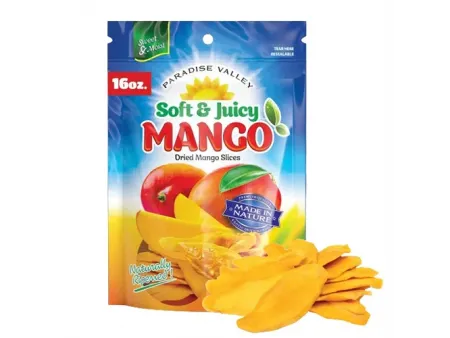

Dried mango packaging

Bag Styles

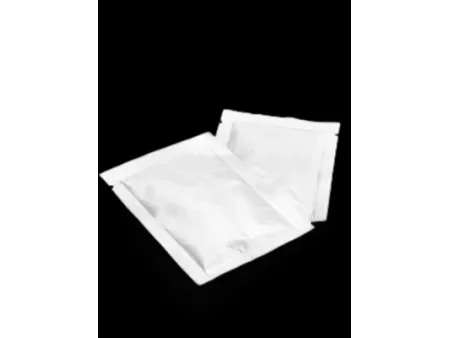

Four side seal bag

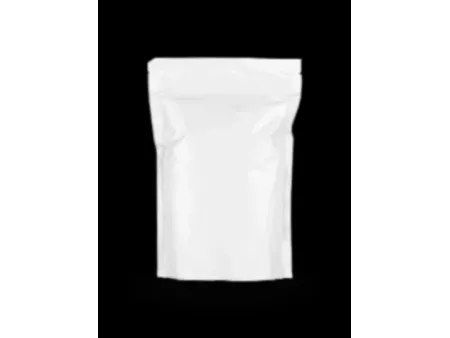

Stand-up bag

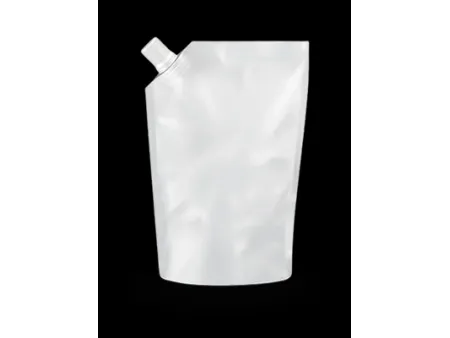

Spout pouch

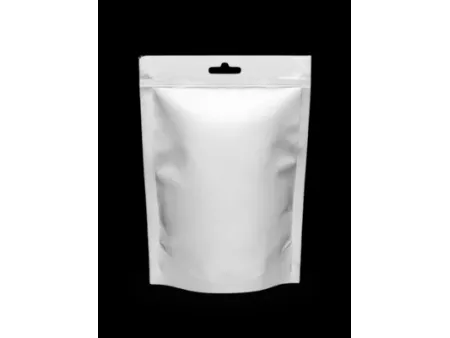

Doypack/stand-up zipper pouch

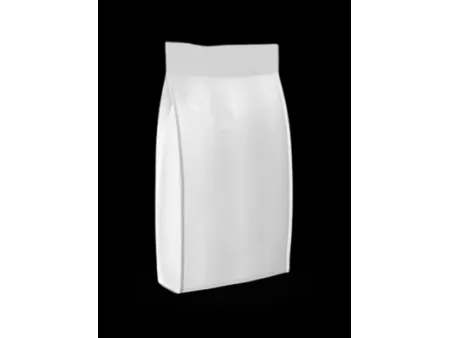

Eight side seal bag/gusset pouch

Specifications

Model	WH8-170D
Bag size	W: 85-170mm L: 150-330mm
Packaging speed	60-80 bags/min
Filling range	10-1000g
Machine dimensions	2320×2060×1650mm
Machine weight	3000kg
Air consumption	0.4m³/min

Standard Configurations

PLC	Frequency Converter	Touch Screen	Solenoid Valve	Bearing
Siemens	Siemens	Siemens	FESTO	IKO/IGUS

Features

Durability The packaging machine is mechanically driven, stable, and durable, with a service life exceeding 15 years.
Material Constructed from food-grade stainless steel 304 or 316, ensuring safety and long-term durability.
Speed Capable of packing 80 bags per minute.
Space-Saving One machine, double the capacity—saving valuable space in your production line.
User-Friendly Simple operation with convenient programming and an easy-to-use interface.

Workflow

Bag loading
Date coding
Bag opening
First filling
Second filling
First heat sealing
Second heat sealing
Output

Details

Set the parameters, start, or turn off functions using the touch screen, providing you with full control over the packaging process.

Suitable for flat bags, this system can store a large pile of bags at once, reducing labor costs and improving efficiency.

The foldable flexible door provides convenience and easy access for smooth operation.

The sliding electric cabinet ensures easy access and space efficiency for better maintenance and operation.

The suction cup mechanism opens the bag, ensuring smooth and precise handling.

Date Coding

The bags are sealed using a two-step heating process, with customizable patterns for a secure and professional finish.

The finished bags are output for further processing or packaging.

Suitable for spout pouch loading, ensuring easy handling and efficient filling.

Suitable for loading large and soft bags, ensuring smooth handling during the packaging process.

Suitable for loading uneven bags, such as stand-up zipper pouches, ensuring reliable filling and sealing.

Suitable for stand-up pouches, this feature opens the bottom of the bag with a sensor to ensure proper filling. If the bag is not properly opened, filling will not occur.

Ideal for liquid materials, this feature ensures the packaging machine stays dry and clean throughout the packaging process.

Ideal for granules, this feature prevents particles from blocking the bag opening, ensuring smooth filling.

Ideal for granules, this feature prevents particles from blocking the hopper, ensuring continuous material flow.

Ideal for liquid materials, this feature prevents liquid residue from remaining at the bag opening, ensuring a clean and secure seal.

Perfect for packaging heavy items, this feature ensures that bags stay secure during the packaging process, preventing them from slipping.

Embossed Printing

Inkjet Printing

Laser Printing

Designed for zipper bags, this feature opens the zipper for easy filling and sealing.

Automatic Lubrication System

Does the packaging equipment support customization?

Yes, each machine is custom-designed to meet the specific production and packaging requirements of every client. Customizations include adjustments for different bag sizes, material handling capacities, and production speed requirements.

What types of materials can the packaging equipment handle for premade pouches?

Yes, the equipment is designed to handle a variety of pouch materials, including single-layer PE, composite films, and aluminum foil bags. It is built to accommodate the physical properties of different pouch types, ensuring reliable handling of each.

Are there any specific pouch shapes that the equipment supports?

The equipment typically supports common pouch types such as flat pouches and stand-up pouches. However, for certain specialized pouch shapes (e.g., those with complex zippers or unique structures), additional adjustments or configurations may be required.

Can the packaging equipment handle different thicknesses of bags?

Yes, the equipment is designed with flexibility to handle bags of varying thicknesses, from thin films to thicker bags. By adjusting the feeding system and the gripping device pressure, the packaging machine ensures that the bags are not damaged. For particularly thick bags, additional configurations may be necessary.

What is the difference between the dual-lane and rotary premade pouch filling machines?

The dual-lane rotary machine handles pouches up to 170mm wide and offers twice the production capacity of the single-lane machine. It reduces the need for operators, saves space, and operates at a faster speed, with packaging speeds exceeding 80 bags per minute.

Reach out to learn more about how the dual-lane rotary premade pouch packing machine can improve your production efficiency!
