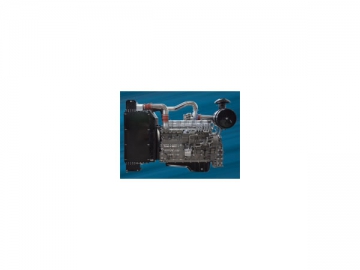

H Series Engine for Generating Sets

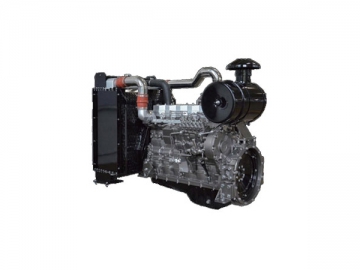

Features of H series Engine
Power Range: 68ps~250ps
SDEC's H series engine is a new energy-saving and eco-friendly engine for generating sets. With the adoption of the advanced design philosophy from Europe and US, it is designed by the cooperation with AVL Company and manufactured strictly according to the SAIC's GPDP design process. Our product incorporates a series of advanced technologies including four-valves, fuel atomization, modular design, cracking connecting rod, etc., featuring compact structure, low noise, strong power, low fuel consumption, as well as good reliability. All in all, it is an ideal matching power for generating sets.

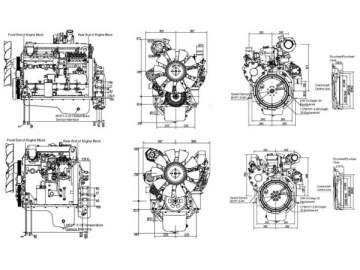

| Model | SC4H90D2 | SC4H140D2 | SC4H170D2 | SC7H180D2 | SC7H210D2 | SC7H230D2 | SC7H250D2 |
| Type | Electronic Governor, In-line, Water-cooled, 4 Stroke, Direct Injection, Turbocharged, Air-Air Intercooler | ||||||
| Number of Cylinder *Bore(mm) | 4×105 | 6×105 | |||||
| Cylinder Liner Cooling | Dry Type | ||||||
| Piston Stroke (mm) | 124 | ||||||
| Total Displacement(L) | 4.3 | 6.5 | |||||
| Compression Ratio | 15.9 | ||||||
| Adjustable Rate (%) | 0-5 | ||||||
| Rotational Speed(r/min) | 1500 | ||||||
| Prime Power/ Rated Power (kW) | 64 | 92 | 115 | 120 | 140 | 155 | 168 |
| Standby Power(kW) | 70 | 101 | 126 | 132 | 154 | 170 | 184 |
| Minimum Fuel Consumption (g/kW·h) | ≤199 | ||||||
| FSN | ≤1.5 | ||||||
| Oil Capacity(L) | 13 | 17.5 | |||||
| Lubricating Oil Consumption (g/kW·h) | ≤0.3 | ||||||
| Firing Order(From Free End) | 1-3-4-2 | 1-5-3-6-2-4 | |||||
| Crankshaft Rotation Direction (Face to the End of Flywheel) | Anticlockwise | ||||||
| Emissions Standards/ Regulations | Non-road G II | ||||||
| Noise dB(A) | 96 | ||||||
| Net Weight(kg) | 450kg | 580kg | |||||
| The Packaged Dimension of Engine(mm) | 1292*1092*1429mm | 1592*1092*1629mm | |||||
| Plateau Performance(M) | 2000 | ||||||
| Flywheel/Flywheel Housing | SAE11.5#/SAE3# | ||||||

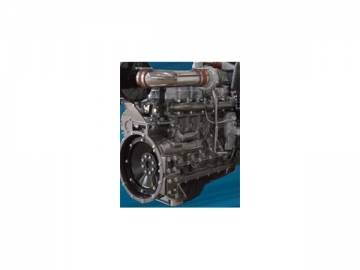

1. Modular Design

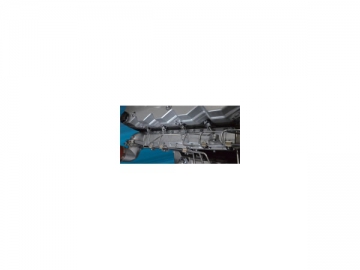

Water pump, oil pump, and oil cooler are incorporated into the engine block. The inlet pipe and cylinder head are combined with each other.
Function: The modular design, used by our H series engine, allows it to reduce the quantity of engine components, improving its reliability and lessening intake resistance.
Advantages: Compact structure, high reliability.
2. Patented Design of Strengthening Rib on the Engine Block
Function: High rigidity and high stiffness
Advantages: Reducing the vibration and noise.
3. Standardized Accessories Parts
Function: Better compatibility and rigidity
Advantage: Easy maintenance
4. Electronic Governor
Function: This H series engine is controlled by the electronic governor with high accuracy, meeting the highest requirement for steady state rate of power station.
Advantages: Better steady-state rate and more accurate instantaneous rate

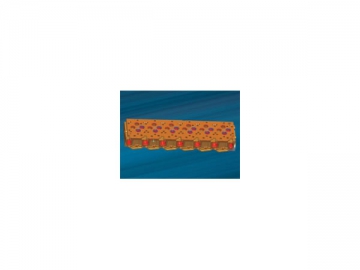

5. Integral Cylinder Head, High Flow Coefficient and Low Eddy Current Airway Design
Function: The intensity and rigidity of cylinder head is greatly improved and this optimized design of airway meets these demands such as high power, low emission, low fuel consumption, and so on.
Advantages: Lower vibration, lower noise, and less fuel consumption.
Technical Parameters of H Series Engine
Power Range: 50-168 KW
Rotation Speed: 1500 rpm
6. Cracking Connecting Rod
Function: One-on-one matching with connecting rod cap ensures precise positioning and improves the engine assembly quality.
Advantage: Easy maintenance
7. Dry-type Cylinder Liner
Function: This dry-type cylinder liner ensures better performance.
Advantages: With adoption of this cylinder liner, our H series engine is easy to maintain, enhancing its wear resistance properties.
8. Rear Gearbox
Function: More stable gear transmission
Advantage: Lower noise
9. Four Valves per Cylinder
Function: This structure will increase the inlet airflow as well as enhance the power and torque of this H series engine.
Advantages: The power of this product is increased. Both the emission and fuel consumption are decreased.

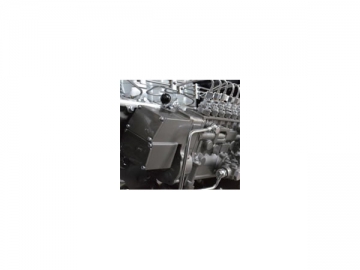

10. P7100 Fuel Injection System
Latest P-series fuel injector adopts the layout of vertical and middle positioning.
Function: With high injecting pressure, this layout ensures the quality of fuel atomization as well as better combustion.
Advantage: Less fuel consumption as well as less emission.
