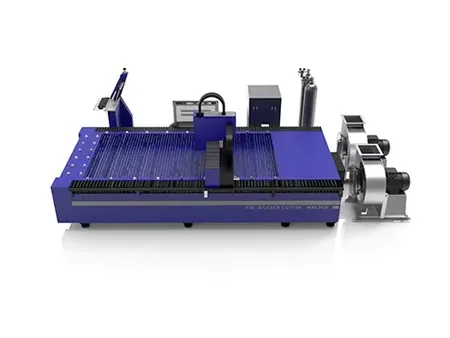

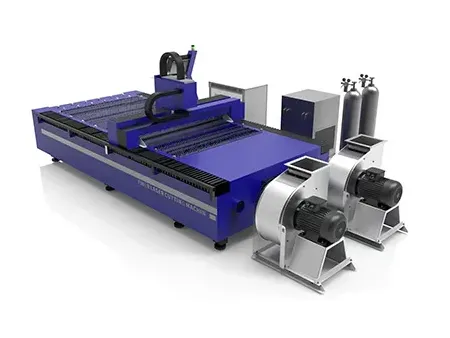

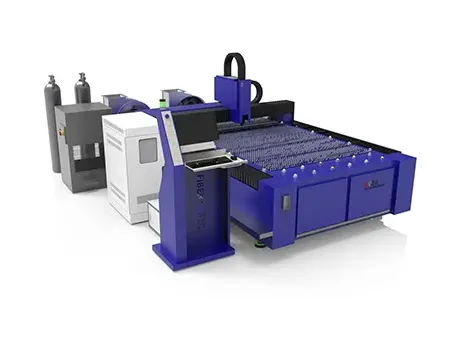

Open Flatbed Fiber Laser Cutting Machine
Open flatbed fiber laser cutting machine is an efficient thermal cutting process on metal sheets, offering positioning accuracy up to ±0.03mm, ensuring precise cuts and reducing material waste, and a maximum speed of 80,000mm/min. It is equipped with a high-power laser ranging from 6000W to 20000W, a Motovario gear reducer, and a dual-temperature water chiller for consistent performance even during prolonged high-speed operations. These features make it widely applicable in industries such as hardware processing, automotive, shipbuilding, construction machinery, and medical equipment.
-
- Laser cutting of carbon steel workpiece
-
- Laser cutting of brass jewelry
-
- Laser cutting of stainless steel nameplate
-
- Laser cutting of carbon steel part
| Laser Power | 8000W |
| Working Area | 3000×1500mm |

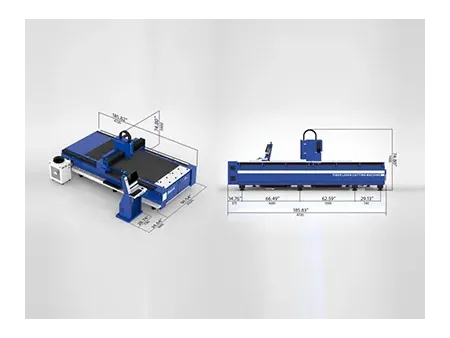

| Dimensions | 4500×2400×1700mm |
| Positioning Accuracy | ±0.03mm/m |
| Repeatability | ±0.03mm/m |
| Max. Speed | 80000mm/min |
| Max. Acceleration | 1.0G |
| Control System | CypCut |
| Max. Material Loading | 1200kg |
| Phase | 3 |
| Power Supply | 380V/60Hz |
| Weight | 3550kg |
| Item | Quantity | Brand |
| Laser Source | 1 | Maxphotonics (12000W) |
| Laser Laser cutting head | 1 | BOCI |
| Gear Reducer (with gear) | 3 | Motovario |
| High Speed Servo Motor | 4 | FUJI |
| High Precision Linear Guide Rail (Tool) | 3 | Hassfull |
| Precision Ball Screw (Z-Axis) | 1 | HIWIN/TBI |
| Precise Rack | 3 | Hassfull |
| Numerical Control System | 1 | CypCut |
| Electric Control | 1 | Schneider |
| Gas Circuit Control | 1 | SMC |
| Water Chiller | 1 | Tongfei |
- Laser Source
The high-power continuous wave multimode fiber laser source, available in 6000W to 20000W, features a water-cooled and modular design, ensuring reliable and efficient cutting performance.
- Motovario Gear Reducer
We use a linear guide rail gearbox, with the integration of the gearbox and gears during the welding process ensuring high precision in the machine's structural integrity.
- Laser Laser cutting head
The BLT 4 series is a cost-effective and intelligent laser cutting head, designed for 2D, 3D, and bevel cutting applications. It supports slag-free cutting, nozzle cooling, and water-cooled sensors, with lens replacement possible within 5 minutes.
- Water Chiller
The dual-temperature water chiller provides stable, real-time water temperature control for the laser, with a control accuracy of ±1°C. This system effectively prevents lens damage caused by condensation when using low-temperature water for cooling.
- Laser Cutting Control Software
CypCut is a custom software developed specifically for the laser cutting industry. It is powerful yet user-friendly, making it suitable for various processing applications.
-
- Sheet metal fabrication
-
- Building materials
-
- Advertising
-
- Watchmaking
-
- Scientific Research
-
- Shipbuilding
-
- Packaging
-
- 3C Electronics
The most commonly used auxiliary gases are oxygen and nitrogen. Nitrogen is primarily used for cutting stainless steel, aluminum, and brass, while oxygen is mainly used for cutting carbon steel.
The primary components include the laser head, machine bed, water chiller, control system, air supply system, etc.
