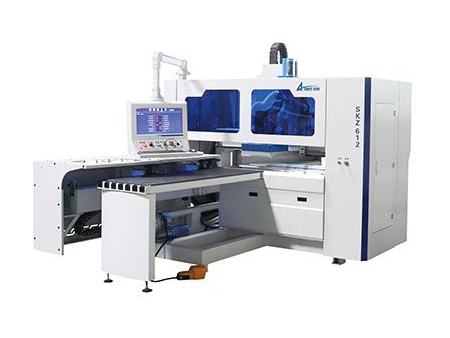

CNC Six-Side Drilling Machine
- SKZ-612B (two drill banks)
- SKZ-612C
X axis travel | 4200mm |
Y axis travel | 1800mm |
Z axis travel | 250mm |

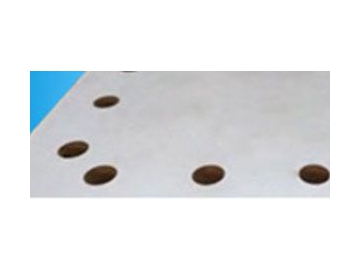

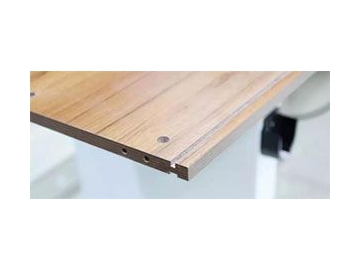

Workpiece length | 150mm~3050mm |
Workpiece width | 40mm~1200mm |
Workpiece thickness | 10mm~60mm |
Max. travel speed of X axis | 135m/min |
Max. travel speed of Y axis | 100m/min |
Max. travel speed of Z axis | 30m/min |
-

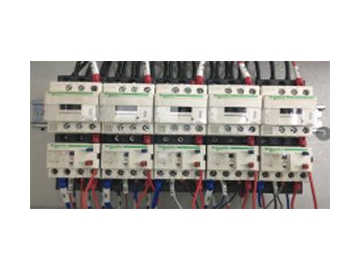

Electrical panel
Brand: France Schneider
Manufactured in accordance with the requirements of CE standard, clear indication of electrical circuits and wiring, circuit diagram is offered for easy troubleshooting when any failure occurs;
-

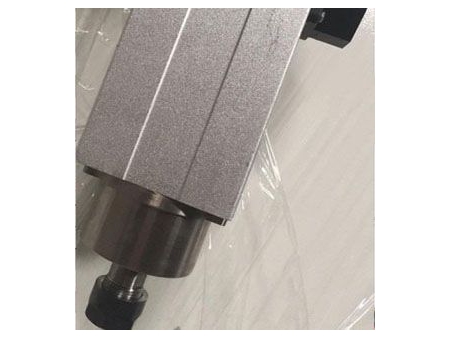

Spindle
Brand: Changchuan
Two 3.5KW air-cooling spindles, spindle speed of 18000rpm/min;
-

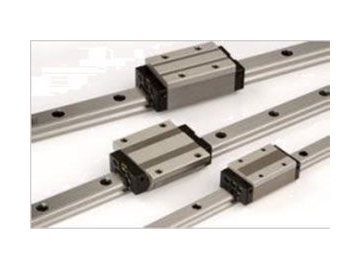

Linear guide and sliding block
Brand: Taiwan HIWIN
Excellent dust-resistant, high precision, high-load capability, long service life;
-

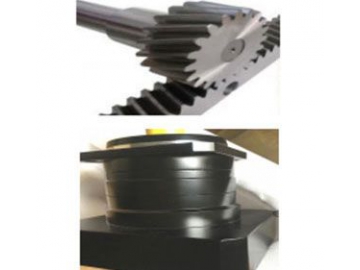

Transmission
Imported high precision 2M helical gear rack, Z axis with ball screw, ensuring stable operation;
-

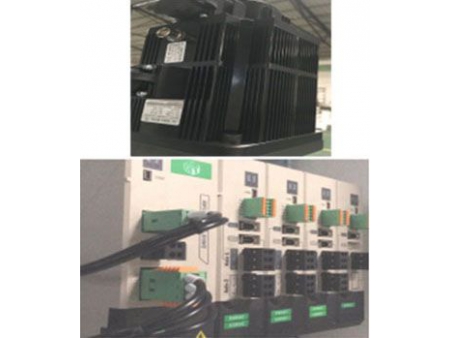

Drive and motor
High efficiency servo motor, featuring high speed and low noise;
Built-in precision bearings deliver great torque and high positioning accuracy;
-

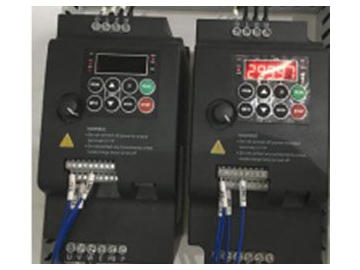

Inverter
Low frequency, high output torque, low noise, stable operation;
-

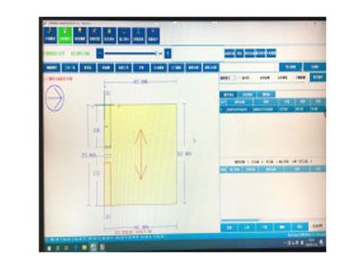

Control software
Brand: Taiwan LNC Technology Sanweijia
User-friendly human-machine interface, easy operation, fast response speed;
-

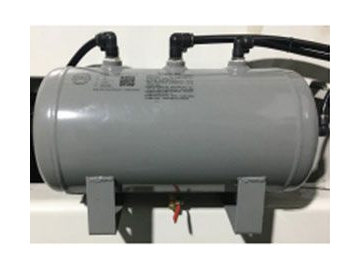

Air storage tank
Air storage tank is configured to ensure stable air pressure;
-

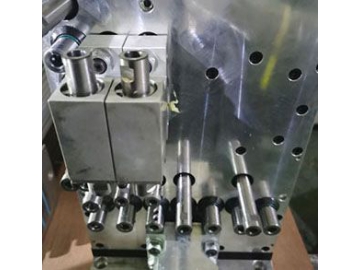

Drill bank
Brand: CC
-

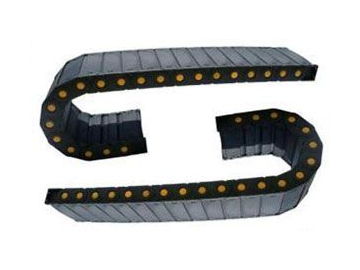

Drag chain
Adopting highly flexible cables, excellent dust-resistant, corrosion resistant, anti static;
Supporting bending radius of 150 degree;
-

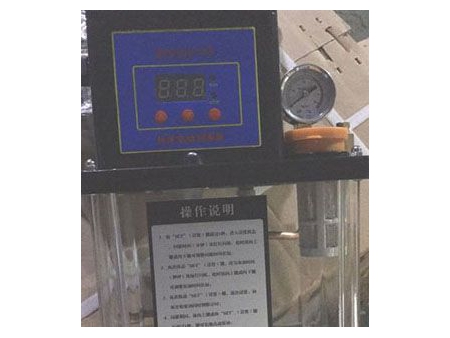

Lubrication system
Prolonging service life of machine;
