Request a Quote
Compact type premade pouch filling and sealing machine
  • Applicable pouch width

    70-200mm

  • Applicable pouch length

    70-300mm

  • Packing speed

    8-30 bags/min

The DC-780M compact premade pouch filling and sealing machine is an extremely versatile piece of equipment, accommodating a range of materials including liquids, sauces, powders, particles and lumps. The packaging machine can be equipped with custom built electronic scales, liquid metering pumps, servo screws and bowl-type feeders to ensure automated bag packaging. Suitable for standard stand-up pouches, special-shaped bags and products with a bag width of 65-190 mm, it can be used for a variety of applications, making it the perfect choice for commercial and industrial users.


Specifications
Machine dimensions (L×W×H) 1300×760×1500mm
Applicable pouch width 70-200mm
Applicable pouch length 70-300mm
Filling volume Max. 3L
Packing speed 8-30 bags/min
Applicable pouch type Standard stand-up pouch, shaped pouch
Air pressure 5-6 kgf/m³
Power supply Single phase, 220V, 50Hz
Machine weight 200kg
Features
  • This premade pouch packaging machine is designed to be highly efficient and convenient, having a streamlined dimension of 1300*760*1500 and a minimal footprint. This renders it ideal for confined areas where space is a concern.
  • This user-friendly premade pouch sealing and sealing machine requires minimal training, allowing its operators to easily access and utilize its functions.
  • The price is budget-friendly and reasonably-priced, making it a cost-effective option compared to other equipment of its kind.
  • The compact pouch sealing device has the capacity to swiftly adjust packaging configurations to satisfy distinct packaging requirements, resulting in excellent packaging.
Details

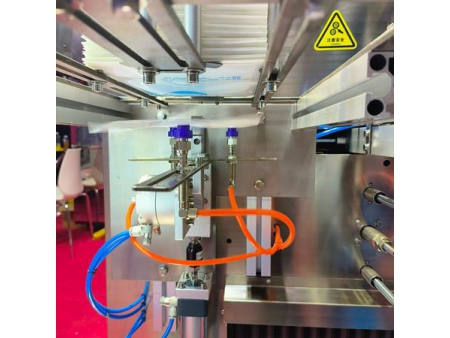

  • Bag pick-up device

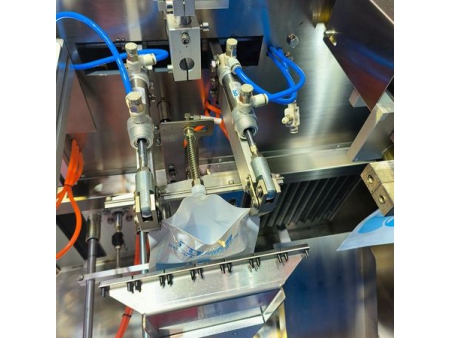

  • Bag opening device

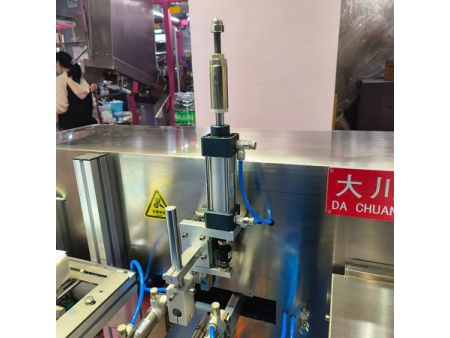

  • Bag feeding system

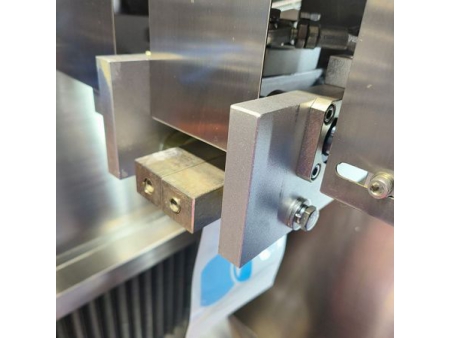

  • Sealing device

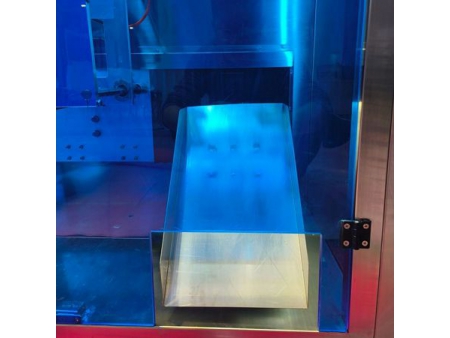

  • Finished product

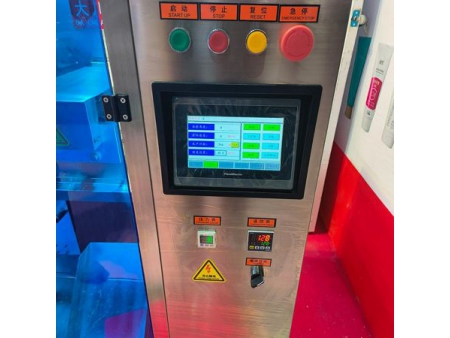

  • PLC operation interface and temperature control table
