Description

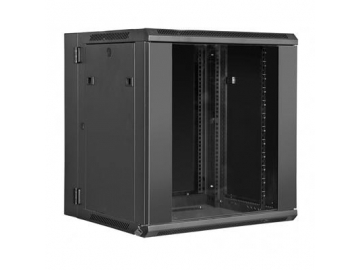

The 19" back open wall mount enclosure is made of high quality SPCC cool rolled steel, and houses the network switch, router, hub and other network equipment and multimedia equipment. Users can choose a glass or mesh front door according to their needs, and the rear door is a double door. Fans, shelves and PDU are optional.

The 19 assembly wall mount enclosure complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41494, PAR7, GB/T3047.2-92 standards and is compatible with ETSI, the metric system and the international 19 inch cabinet standards.

Surface finish: degreasing, pickling, phosphating, powder coating.

Material: high quality SPCC cool rolled steel

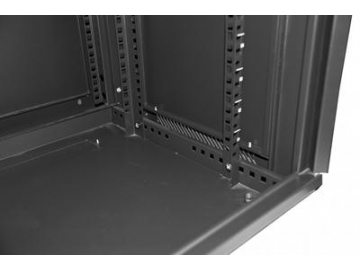

Rack rail with square holes thickness: 1.5mm

Color: major structure RAL9004 (black), RAL7035 (gray)

Details
Parameter
19" back open wall mount enclosure (mm)
Type Width Depth Height Rack unit Type Width Depth Height Rack unit
SQ60550C04 600 450+100 274 4U SQ60550C12 600 450+100 629 12U
SQ60600C04 500+100 SQ60600C12 500+100
SQ60550C06 600 450+100 363 6U SQ60550C15 600 450+100 762 15U
SQ60600C06 500+100 SQ60600C15 500+100
SQ60550C09 600 450+100 496 9U SQ60550C18 600 450+100 892 18U
SQ60600C09 500+100 SQ60600C18 500+100
(Please enter your desired product model)
Features

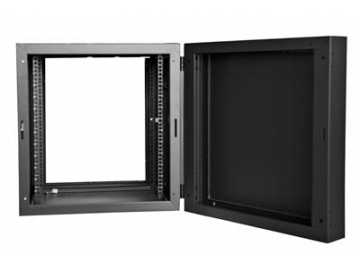

  • The back open wall mount enclosure has a double-door that can open at an angle of 120 degrees, and a mesh front door that can be opened at an angle of 180 degrees.
  • The wall mount enclosure features a high structural strength and a static load of 60kg.
  • The wall mounting is simple and convenient and the inner structure assembly follows international standards.
  • The hinge on the rear door is black and features an outstanding load bearing capacity.

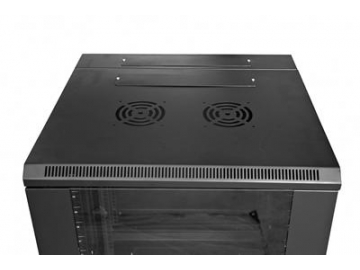

  • The 120mm fan is installed on the top of the cabinet, giving it an excellent ventilation performance.
  • Fiber optic cables and other cable can be inserted from the top and bottom of the cabinet.
  • IP grade of IP20.
  • Ingo can package the cabinet according to your requirements, and does everything possible to make shipping as easy as possible.
  • If you can't find a suitable size, please contact us to customize the cabinet.
