Description
The 2-post open frame rack can help users manage IT equipment and cables. When compared to a traditional cabinet, the 2 post open frame rack features a lower price and shipment cost. The bottom of the CPI cabinet also takes up less space, and allows users to make the most of their space.

The 2-post open frame rack complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41494, PAR7, GB/T3047.2-92 standards and is compatible with ETSI, the metric system and the international 19 inch cabinet standard.

Material: high quality SPCC cool rolled steel

Surface finish: degreasing, pickling, phosphating, powder coating.

Thickness: supporting feet, front and bottom horizontal racks are 2.0mm, upright racks are 1.5mm

Color: RAL9004 (black)

Details
Parameter
2-Post open frame rack (mm)
Type Width Depth Height Rack unit
ST58120027 585 120 1331 27U
ST58120032 585 120 1553 32U
ST58120037 585 120 1775 37U
ST58120042 585 120 1998 42U
Features
  • The assembly and disassembly of the 2-post open frame rack is easy, and shipping is convenient and inexpensive.

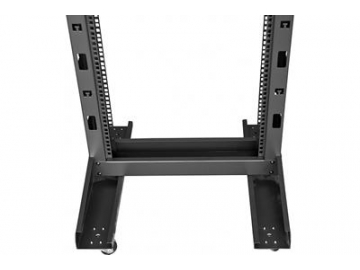

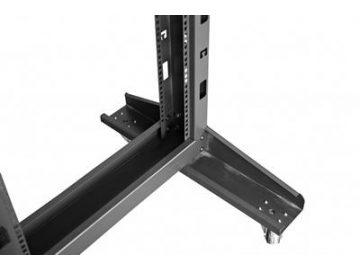

  • The 2-post open frame rack can be directly attached to the ground, or placed on support feet as a replaceable, movable caster.
  • The 2-post open frame rack makes cable and equipment maintenance easy.
  • A variety of accessories, such as cable trunking and removable shelves are optional.
  • Ingo can package the open frame rack according to your requirements, and will do everything possible to make the shipping as easy as possible.
  • If you can't find a suitable size, please contact us for rack customization.
