19 Inch Wall Mount Rack Enclosure

Request a Quote

View All: http://metal-enclosure.com/1-6-flush-mount-single-door-enclosure.html

Description

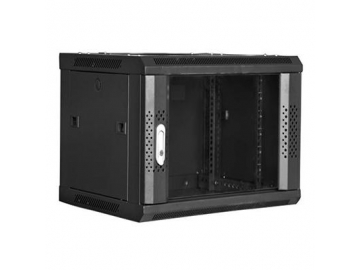

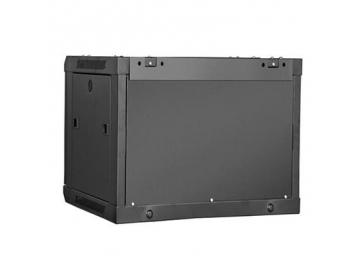

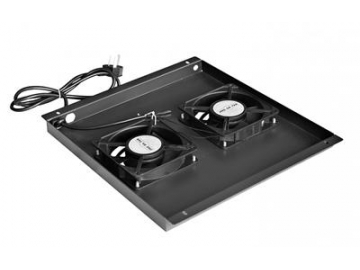

The 19 inch wall mount rack enclosure is made of high quality SPCC cool rolled steel and features a non-welded structure. The network switch, router, hub and other network equipment and multimedia equipment can all be installed in the cabinet, which is then fronted by a glass or mesh door according to your needs. Fans, flat shelves and PDU are optional. This wall rack is also compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41494, PAR7, GB/T3047.2-92 standards and is compatible with ETSI, the metric system and the international 19 inch cabinet standard.

Surface finish: degreasing, pickling, phosphating, powder coating.

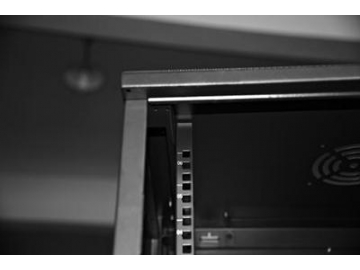

Rack rail with square holes thickness: 1.5mm

Color: major structure RAL9004(black), RAL7035(gray)

Details

Parameter
19 inch wall mount rack enclosure (mm)

Type	Width	Depth	Height	Rack unit	Type	Width	Depth	Height	Rack unit
SQ60450B04	600	450	274	4U	SQ60450B15	600	450	762	15U
SQ60500B04		500			SQ60500B15		500
SQ60600B04		600			SQ60600B15		600
SQ60450B06	600	450	363	6U	SQ60450B18	600	450	895	18U
SQ60500B06		500			SQ60500B18		500
SQ60600B06		600			SQ60600B18		600
SQ60450B09	600	450	496	9U	SQ60450B22	600	450	1073	22U
SQ60500B09		500			SQ60500B22		500
SQ60600B09		600			SQ60600B22		600
SQ60450B12	600	450	629	12U	SQ60450B27	600	450	1295	27U
SQ60500B12		500			SQ60500B27		500
SQ60600B12		600			SQ60600B27		600

(Please enter your desired product model)

Features

Wall mounting of a single door on the 19 inch wall cabinet is easy and convenient.
The cabinet features a high structural strength with a static load of 60kg.
The front and rear doors are easy to remove, and cables can be inserted from the top and bottom.
Customers can choose the right cabinet size for their needs, from 4U to 22U.

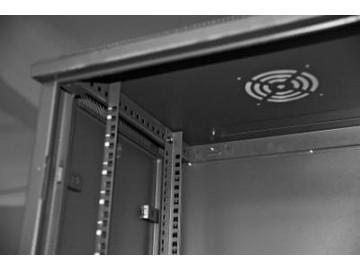

The racks inside the wall mount cabinet can be removed or moved up and down.
We can ship unassembled cabinet parts to our customs, thus saving transportation space and cutting costs.
