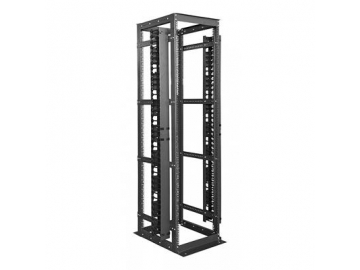

4-Post Open Frame Rack

Request a Quote

View All: http://metalworking-machine.com/5-1-4-post-hydraulic-press.html

Description
The 4-post open frame rack can help users manage IT equipment and cables. When compared to a traditional cabinet, the 4 post open frame rack features a lower price and shipment cost. The bottom of the CPI cabinet also takes up less space, and allows users to make the most of their space.

The 4-post open frame rack complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41494, PAR7, GB/T3047.2-92 standards and is compatible with ETSI, the metric system and the international 19 inch cabinet standard.

Material: high quality SPCC cool rolled steel

Surface finish: degreasing, pickling, phosphating, powder coating.

Thickness: supporting feet, upright racks, front and bottom horizontal racks are 2.0mm

Color: RAL9004 (black)

Parameter
4-post open frame rack (mm)

Type	Width	Depth	Height	Rack unit
SR51600027	515	600-960	1331	27U
SR51600032	515	600-960	1553	32U
SR51600037	515	600-960	1775	37U
SR51600042	515	600-960	1998	42U

Features

Due to the modular design, the assembly and disassembly of the 4-post open frame rack is easy, and shipping is convenient and inexpensive.
The 4-post open frame rack can be directly attached to the ground, or placed on support feet as a replaceable, movable caster.
The 4-post open frame rack makes cable and equipment maintenance easy.
A variety of accessories, such as cable trunking and removable shelves are optional.
Ingo can package the open frame rack according to your requirements, and will do everything possible to make the shipping as easy as possible.
If you can't find a suitable size, please contact us for cabinet customization.
