Extrusion Coating and Laminating Machine (LM Series)

Request a Quote

View All: http://castfilmextruder.com/2-1-extrusion-coating-machine.html

The extrusion coating and laminating machine is suitable for the coating and laminating of various materials such as paper, plastic, nonwoven fabric. The finished materials are widely used in the food packaging, medical packaging, wound dressings, clothing, footwear, bags, etc.

Features

The extrusion coating and laminating machine provides superior coating/laminating and efficient operation at high speed.

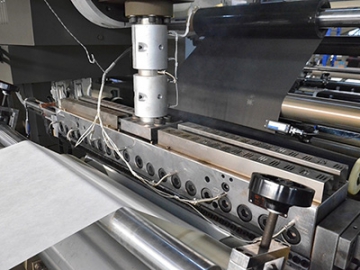

Comes with a flat sheet die.
User friendly design offers unprecedented ease of handling.
Provides best in-class extrusion and proven web solutions using extrusion coating and lamination process.

Technical Parameters

Model	LM-800	LM-1100	LM-1300	LM-1600	LM-1800
Length of Die Lip	900mm	1200mm	1400mm	1800mm	2000mm
Web Width	400-700mm	500-1000mm	600-1250mm	800-1500mm	900-1700mm
Max. Laminating Speed	100-150m/min	100-150m/min	100-150m/min	100-150m/min	100-150m/min
Coating Thickness	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm
Screw Diameter, L/D Ratio	φ80mm×30	φ95mm×30	φ105mm×30	φ120mm×30	φ140mm×30
Max. Diameter of Unwind and Rewind Roll	φ1200	φ1200	φ1200	φ1200	φ1200
Machine Dimensions	9.6×6×3.2m	9.6×7×3.2m	9.6×8×3.2m	9.6×9×3.2m	9.6×12×3.2m
Installed Power	60KW	70KW	80KW	100KW	130KW
Pressure and Chill Roll	φ510mm	φ510mm	φ510mm	φ510mm	φ510mm
