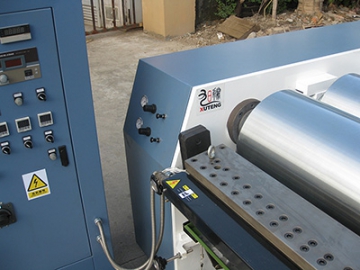

Extrusion Coating Machine, (RTJ Series)
Request a Quote
The extrusion coating machine is applied for the coating of hot melt adhesives with high viscosity, including PA, PES, PU, EVA, and TPU. It's applied to shoe materials, hot melt adhesive films, bag materials, waterproofing membrane, etc.
Features
- The extrusion coating machine is specially designed for hot melt adhesives and thermoplastic material.
- Melting speed varies depending on the pressure, torque, motor speed, and coating head type.
Technical Parameters
| Model | RTJ |
| Coating Width | 400-2500mm |
| Coating Weight | 20-2000g/m² |
| Max. Coating Speed | 30m/min |
| Unwind Roll Diameter | 1000mm |
| Rewind Roll Diameter | 800mm |
| Unwinding Unit | 2 sets |
| Rewinding Unit | 1 set |
| Length | 4800mm |
| Height | 1350mm |
