Extrusion Coating Line (for TPU Toe Puff, Heel Counter Materials)

Request a Quote

View All: http://castfilmextruder.com/2-1-nonwoven-extrusion-coating-line.html

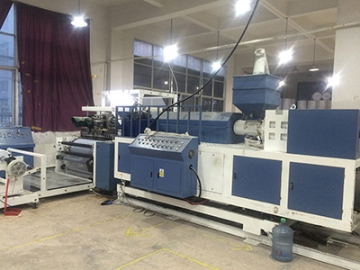

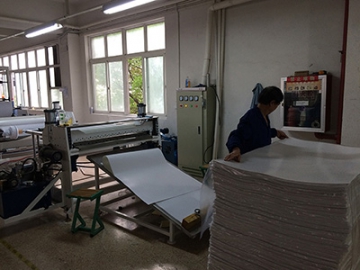

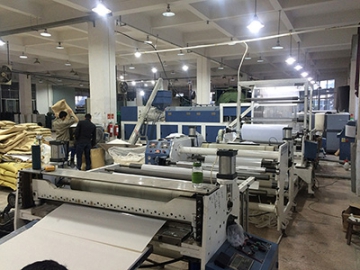

Based on the extensive experience in the footwear materials, we developed and manufactured TPU extrusion coating line specially used for the manufacture of heel counters and toe puffs material. The processed materials feature fast elastic recovery, good adhesion, and excellent shape retention, making it especially suitable for making high-end women's shoes.

Features

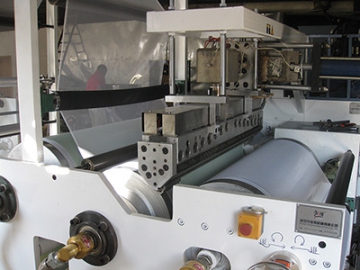

The extrusion coating line comes with a T-die (coater die) that is designed with CAD/CAM/CA, and processed with CNC machines.
Coating width can be easily adjusted by rotating the hand wheel.
Specifically configured compression ratio of the screw and mixing mechanism in the extruder well adapt to the TPU based hot melt adhesives.
The advanced hydraulic screen changer provides no adhesive leak and easy operation.
The extruder can be adjusted in three directions.
The screw barrel is manufactured with special steel, and undergo hardened treatment, ensuring high rigidity without deformation.

Technical Parameters

Model	TPU1100
Coating Width	800-1000mm
Coating Thickness	0.4-2.0mm
Production Speed	15M/min
Length	13000mm
Width	9500mm
Height	2400mm
