Insulated Glass (IGU Glass) Manufacturer

Insulated Glass (IGU Glass)

Request a Quote

View All: http://customglass-solution.com/3-3-insulated-glass.html

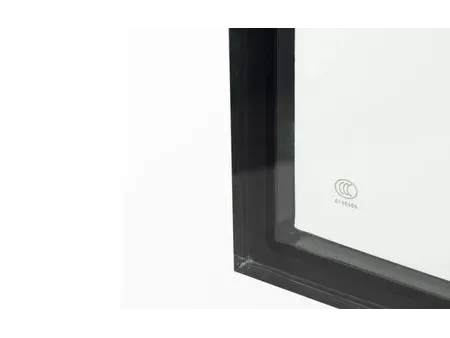

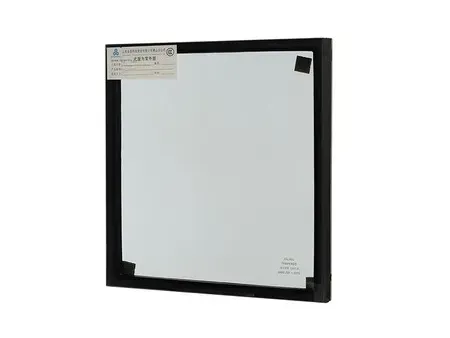

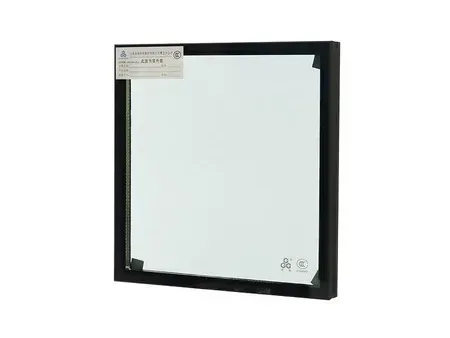

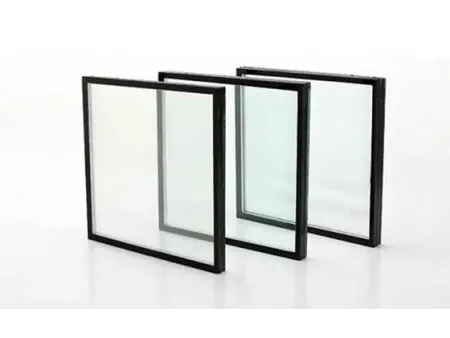

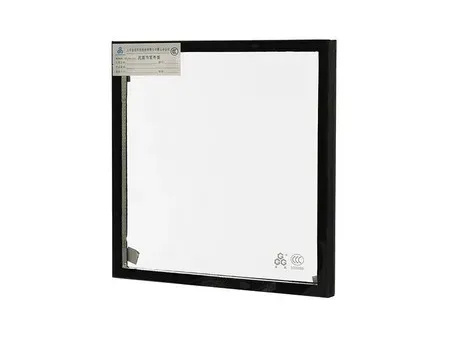

Our insulated glass (IGU glass) features two or more layers of flat glass bonded with high-strength, high-density composite adhesives, sealed with perimeter seals and glass spacers. Dry gas is injected between the panes, with desiccants inside the frame ensuring dryness. We offer various glass options such as clear float glass, patterned glass, thermal reflective glass, laminated glass, and tempered glass as base sheets.

Features

Temperature regulation
Our insulated glass effectively regulates indoor temperature by minimizing heat transfer through the air gap between the panes. This insulation reduces energy loss and helps maintain a stable and comfortable indoor temperature.
Visibility
Even in the most humid conditions, our insulated glass ensures clear visibility on the surface. This is owing to the sealed, dry gas between the panes and the desiccants used, which prevent condensation and fogging.
Sound insulation
By using laminated glass as the base sheet in our insulated glass units, we significantly reduce sound transmission. This makes our glass ideal for noisy environments such as city buildings, offices, and homes near highways, providing a quieter indoor experience.

Our Capability

Equipped with three insulated glass production lines, including advanced insulated glass lines imported from Austria, we boast a professional team capable of recommending diverse glass configurations to enhance both comfort and aesthetic possibilities for your building's facade.

With a complete glass industry chain, 14 float glass production lines, our specialized online low-E glass production line with an annual output of 20 million sqm, the offline low-E glass production line with an annual output of 10 million sqm, and two glass processing bases, we deliver high-quality glass solutions tailored to various design and performance requirements.

We offer a diverse range of glass, including various colors, ultra clear, offline low-E coated glass, and single-silver, double-silver, and triple-silver low-E glass, in order to meet different design and performance requirements.

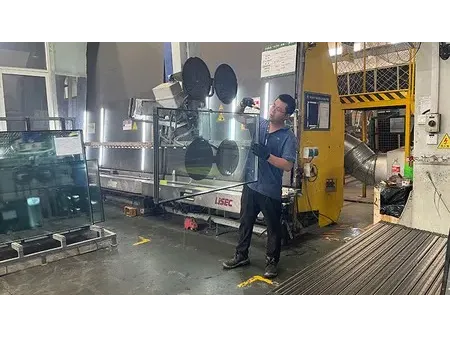

We are equipped with cutting-edge machinery from Lisec, Bottero, Glaston, and Bystronic, world-renowned suppliers, to guarantee superior quality and performance.

We invest $15 million annually in R&D, with a 6,000 sqm laboratory and strong R&D and technical support teams to deliver advanced, high-performance glass solutions to our customers.

From raw materials to cutting, edging, tempering, laminating, and insulating, we maintain rigorous quality control to ensure top-notch glass products.

Performance Data

Product Configuration	Colour	Visible light			Sunlight		NFRC 2010							EN673		JGJ151
		Tvis%	Rvis%		Sunlight		U-value (W/m2.K)				SC (%)	SHGC (%)	LSG (%)	U-value (W/m2.K)		K-value (W/m2.K)		SC (%)	GIR (%)
			Out	In	Tsol%	Rsol%	Air		Argon					Air	Argon	Air	Argon
			Out	In	Tsol%	Rsol%	Winter	Summer	Winter	Summer				Air	Argon	Air	Argon
6Solarban 72 12A 6Ultra-clear	Grey	70	16	17	27	56	1.66	1.60	1.38	1.29	0.33	0.29	2.41	1.60	1.27	1.66	1.39	0.37	0.02
6Solarban 72 16A 6Ultra-clear	Grey	70	16	17	27	56	1.70	1.34	1.44	1.08	0.33	0.29	2.41	1.35	1.14	1.71	1.45	0.36	0.02
6Solarban 70 12A 6Clear	Grey	68	15	15	26	40	1.62	1.56	1.34	1.23	0.34	0.30	2.27	1.55	1.22	1.63	1.36	0.37	0.04
6Solarban 70 16A 6Clear	Grey	68	15	15	26	40	1.67	1.29	1.40	1.01	0.34	0.30	2.27	1.31	1.08	1.68	1.42	0.37	0.04
6Solarban 60UC 12A 6Ultra-clear	Grey	79	14	14	43	44	1.67	1.62	1.39	1.31	0.51	0.44	1.80	1.61	1.28	1.67	1.41	0.55	0.14
6Solarban 60UC 16A 6Ultra-clear	Grey	79	14	14	43	44	1.71	1.36	1.45	1.09	0.51	0.44	1.80	1.37	1.15	1.72	1.46	0.55	0.14
6T55NT 12A 6Clear	Blue	50	10.2	11.6	20	29	1.69	1.65	1.42	1.34	0.29	0.25	2.00	1.64	1.32	1.70	1.43	0.31	0.05
6UD80 12A 6Ultra-clear	Neural	73	13	14	38	41	1.66	1.60	1.38	1.29	0.46	0.40	1.85	1.60	1.27	1.66	1.39	0.49	0.12
6UD80 16A 6Ultra-clear	Neural	73	13	14	38	41	1.70	1.34	1.44	1.08	0.45	0.39	1.87	1.35	1.14	1.71	1.45	0.49	0.12
6UD70 12A 6Ultra-clear	Powder Blue	65	16	18	35	35	1.72	1.69	1.45	1.39	0.43	0.38	1.71	1.67	1.36	1.73	1.46	0.46	0.14
6OUD70 16A 6Ultra-clear	Powder Blue	65	16	18	35	35	1.76	1.44	1.51	1.19	0.43	0.37	1.76	1.44	1.23	1.77	1.52	0.46	0.14
6UD57 12A 6Ultra-clear	Light Grey	55	16	14	26	42	1.69	1.64	1.41	1.34	0.34	0.29	1.83	1.63	1.31	1.69	1.43	0.37	0.08
6UD57 16A 6Ultra-clear	Light Grey	55	16	14	26	42	1.73	1.39	1.47	1.13	0.33	0.29	1.89	1.39	1.18	1.74	1.49	0.36	0.08
6UD49 12A 6Ultra-clear	Bluish Grey	48	15	13	23	44	1.69	1.64	1.41	1.34	0.30	0.26	1.85	1.63	1.31	1.69	1.43	0.33	0.07
6UD49 16A 6Ultra-clear	Bluish Grey	48	15	13	23	44	1.73	1.39	1.47	1.13	0.30	0.26	1.85	1.39	1.18	1.74	1.49	0.32	0.07
6UD45 12A 6Ultra-clear	Silver grey	42	26	15	18	52	1.68	1.63	1.40	1.32	0.24	0.21	2.00	1.62	1.30	1.68	1.42	0.26	0.05
6UD45 16A 6Ultra-clear	Silver grey	42	26	15	18	52	1.72	1.38	1.46	1.11	0.24	0.21	2.00	1.38	1.17	1.73	1.48	0.26	0.05
6US1.16 12A 6Ultra-clear	Neural	83	14	14	60	30	1.72	1.68	1.45	1.38	0.71	0.62	1.34	1.67	1.36	1.72	1.46	0.73	0.43
6US1.16 16A 6Ultra-clear	Neural	82	14	14	60	30	1.76	1.44	1.50	1.18	0.71	0.61	1.34	1.43	1.22	1.77	1.52	0.73	0.43
6S1.16 12A 6Clear	Neural	79	13	13	50	24	1.72	1.69	1.45	1.39	0.65	0.57	1.39	1.67	1.36	1.73	1.46	0.68	0.37
6S1.16 16A 6Clear	Neural	80	13	13	50	24	1.76	1.44	1.51	1.19	0.65	0.57	1.40	1.44	1.23	1.77	1.52	0.68	0.36
6US83 12A 6Ultra-clear	Neural	79	12	13	56	24	1.74	1.71	1.47	1.42	0.67	0.59	1.34	1.70	1.39	1.74	1.48	0.70	0.41
6US83 16A 6Ultra-clear	Neural	79	12	13	56	24	1.78	1.47	1.53	1.22	0.67	0.58	1.36	1.46	1.25	1.79	1.54	0.69	0.41
6S83 12A 6Clear	Neural	75	12	13	46	20	1.75	1.72	1.48	1.43	0.61	0.53	1.42	1.71	1.40	1.75	1.49	0.64	0.34
6S83 16A 6Clear	Neural	75	12	13	46	20	1.78	1.48	1.54	1.23	0.61	0.53	1.42	1.47	1.26	1.79	1.55	0.64	0.34
Notes: 1. Above performance data are calculated according to standards NFRC 2010, EN673 and JPG151. 2. The performance data are only for reference. Jinjing will hold the right of final interpretation. 3. Light-to-solar gain (LSG) ratio is the ratio of visible light transmittance to solar heat gain coefficient. 4. The make-up with argon means the cavity is filled with a 90% argon 10% air mixture.

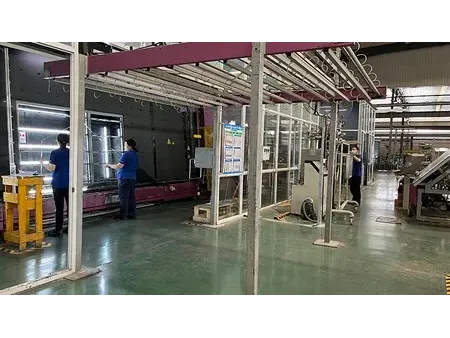

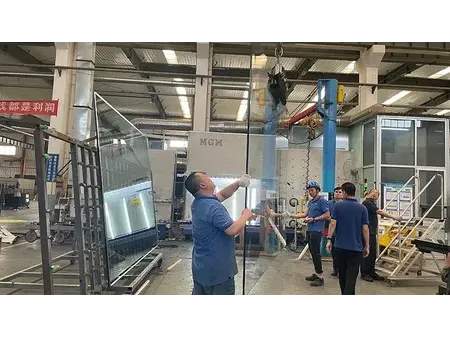

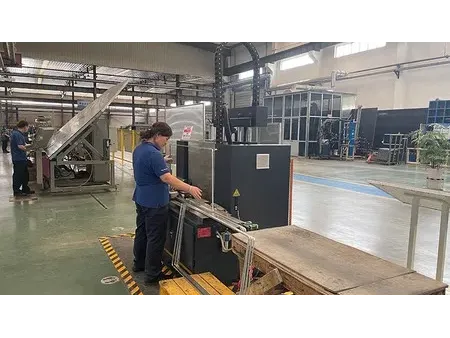

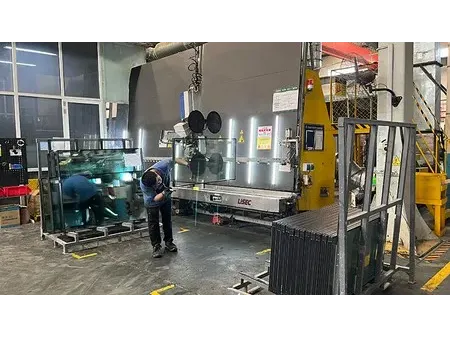

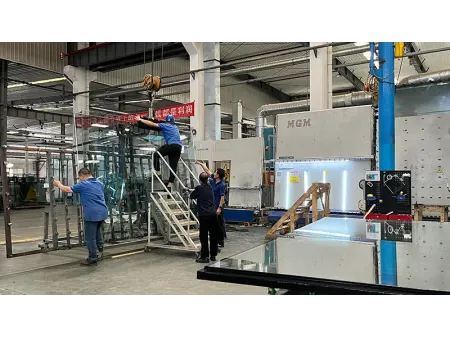

Gallery of Glass Manufacturing

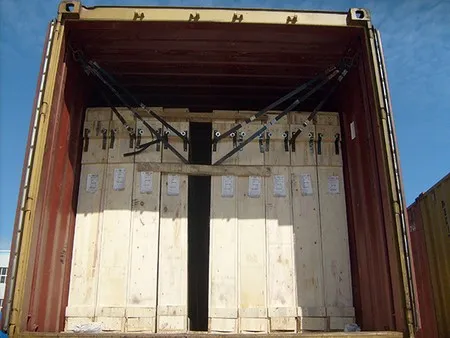

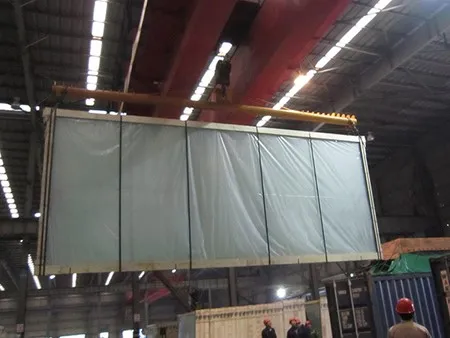

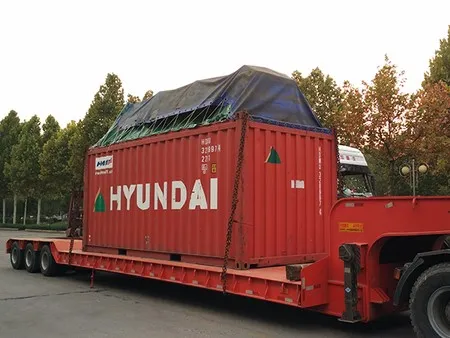

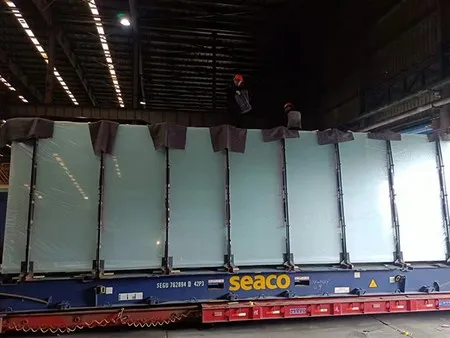

Packaging & Loading

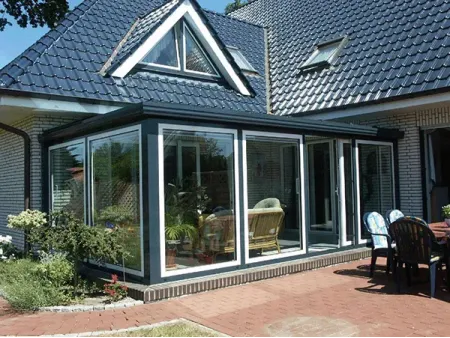

Applications

Glass Curtain Wall System

Interior Decorative Glass

Projects

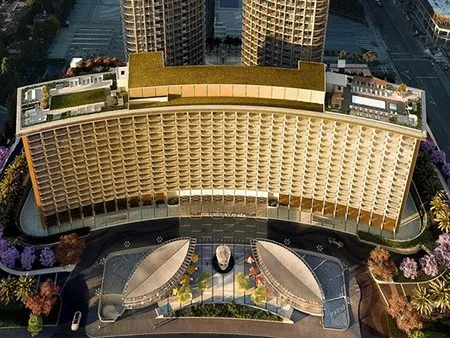

Project Name: New Century Plaza
Location: Los Angeles, USA
Glass: 8mm Solarban72 16A 13.52mmPVB laminated for curtain wall

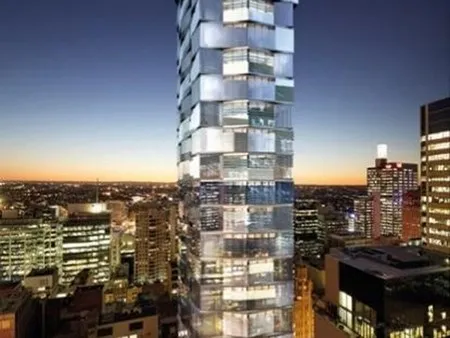

Project Name: York & George
Location: Sydney, Australia
Glass: 6mm 6mm D49 12A 10.38mm

Project Name: Nagano-ken, Japan
Glass: 6mm Solarban70 6A 6mm clear glass

Project Name: ONE ZA' ABEEL
Location: Dubai UAE
Glass: 6mm/8mm/10mm/12mm ultra clear glass for curtain wall & glass ribs

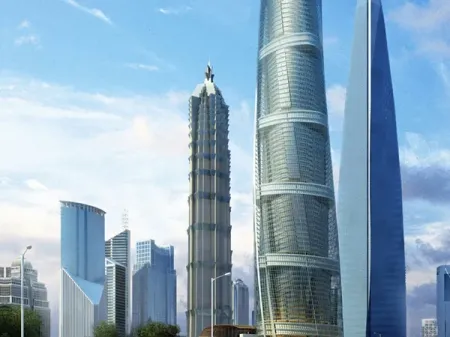

Project Name: Shanghai Tower
Location: Shanghai China
Glass: 8mm/10mm/12mm ultra clear glass for curtain wall & glass ribs

Project Name: Apple Store
Location: Shanghai China
Glass: 12mm/15mm ultra clear glass for curtain wall, beams & stairs

Project Name: FUBANG CHANGCHUN
Location: Taiwan, China
Glass: 10.3M Laminated IGU with Double Silver Low-E Coating
