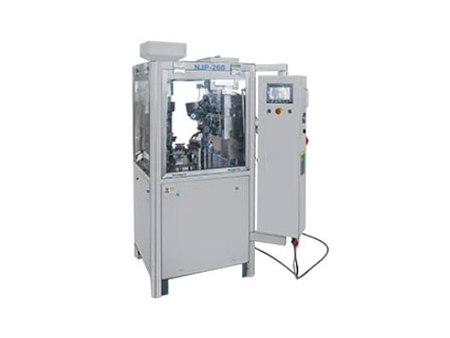

Automatic Liquid Capsule Filling Machine
Our fully automatic capsule filling machine was designed to improve the precision and versatility to capsules production line. It's equipped with a liquid pump imported from Germany and a servo feed system imported from Japan, ensuring each capsule is filled accurately, with a variance control of just ±1.5%. The capsule filling machinery can process a wide range of substances such as oily liquids, solutions, fish oil, suspension liquids, and pastes. Its user-friendly design, including automatic motor speed control, makes operating the capsule filling machine easier and more efficient. Besides being suitable for the pharmaceutical industry, it can also be used for the food and health care industries. Our liquid capsule filling equipment offers a reliable and efficient way to fill capsules, meeting the demands of modern production.
Features- The automatic capsule filling machine can reach a maximum production capacity of up to 260 capsules per minute.
- Designed for standard and serial production, the capsule filler features interchangeable manufacturing parts with over 99% compatibility, streamlining the production process.
- Each spare part is coded to make it the identification and organization easier.
- Mold changes are simplified thanks to precision-designed location holes, ensuring quick and accurate alignment.
- The automatic capsule filler is not only efficient in changing moulds but also user-friendly in terms of operation and cleaning, making it a practical choice for busy production environments.
| Model | ||
| Production Capacity (pcs/min) | 260 | 450 |
| Applicable Materials | Oily liquid, fish oil, suspension liquid, or paste | |
| No. of Mould Bores | 2 holes | 3 holes |
| Filling Precision | 99.8% | |
| Capsule Size | 00-5# | |
| Filling Quantity Accuracy | 2% | |
| Power Supply | 380V 50HZ, 3kW | |
| Weight (kg) | 500 | 700 |
| Dimensions (mm) | 700×800×1700 | 730×950×1700 |
Jiangnan Enterprise is an experienced semi automatic capsule filling machine manufacturer in China. Our company provides a wide range of products, including manual capsule filling machine, automatic capsule filling machine, high efficiency tablet coating machine, and more.
