Rotary Axis for Laser Tube Cutting Head
Request a Quote
W02-HC-H01
Laser cutting head spindle used for processing metal tubes and profiles
W02-HC-H01
Laser cutting head spindle used for processing metal tubes and profiles

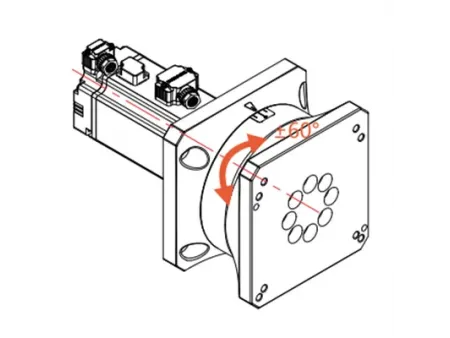

This rotary spindle is designed for laser tube cutting heads, enabling efficient processing of metal tubes and profiles.
Specifications
| Applicable Laser Cutting Head | LCN03A/GS03C/LCF Series |
| Motor Power | 400W |
| Gearbox Reduction Ratio | 1:100 |
| Swing Range | ±60° |
| Rated Rotation Speed | 30r/min |
| Angular Acceleration | 240rad/s2 |
| Positioning Accuracy | 1arcmin |
| Weight | 3.5kg |
Features
- Swing angle ±60°
- Suitable for bevel cutting applications
- Equipped with servo motor
- High-quality precision machining
