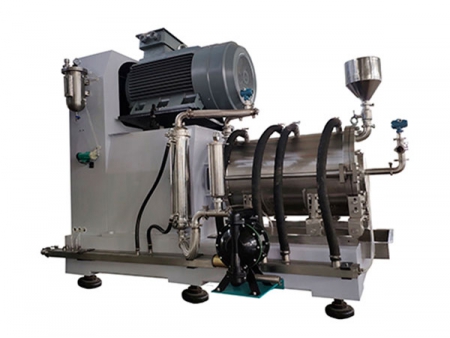

Horizontal Double-Drive Nano Bead Mill, RTSM-150BJD-S
This nano bead mill with double-drive is designed to meet our customers’ needs of grinding new nano materials. It has a quality rod pin with an optimized configuration. Moreover, the screen’s filtering area has been greatly increased. This is how this nano bead mill enhances grinding efficiency and output, thus satisfying the demands of large-scale grinding of nano materials.
Regarding the technical details, the main motor of this grinder makes the main shaft rotor rotate at high speed through a V-belt. Also, the shaft rotor makes the grinding medium move fast, creating huge impact force, friction force and shear force, which ensure the material is fully ground and mixed.
To achieve these functions, this double-drive bead mill has adopted several advanced techniques. For example, the grinding chamber is sealed to prevent the generation of bubbles and additives from evaporating, thus avoiding air pollution. The external static screen on this grinding equipment is precise and wear-resistant, ensuring effective separation of ground materials and a long service life.
- No screens, so it can use grinding medium below 0.05 mm and grind materials smaller than 100 nanometers;
- Special separator structure and unique filtering design, ensuring no beads are left behind;
- Slit-type grinding structure, high energy density;
- Reasonable design of material flow channel, high grinding efficiency and uniform particle size;
- Certified mechanical seal, long service life. Solvent can be used as sealing medium for mechanical seal, preventing pollution even if there is leakage;
- Formula can be easily imported and exported by pressing a button;
- Sophisticated rotor design, proven by simulation and actual operation, ensuring excellent grinding efficiency, moderate-temperature operation and low energy cost.
new energy, lithium battery, silicon carbon nanomaterials, paint, coating, pigment etc.
- Model No: RTSM-150BJD-S
- Volume: 150L
- Main Motor Power: 132kW
- Separating Motor Power: 22kW
- Materials of Inner Grinding Chamber Component: Silicone Carbide
- Materials of Outer Grinding Chamber Component: SS304 Stainless Steel
- Grinding Principle: Pin Type
- Materials of Rotor Component: Ceramic
- Max. Line Speed: 15m per second
- Screen Component Structure: None
- Operation Method: PLC with Touch Screen
- Mechanical Seal Component Style: Double-end Container Type
- Pneumatic Diaphragm Pump: 3-inch Pneumatic Diaphragm Pump
