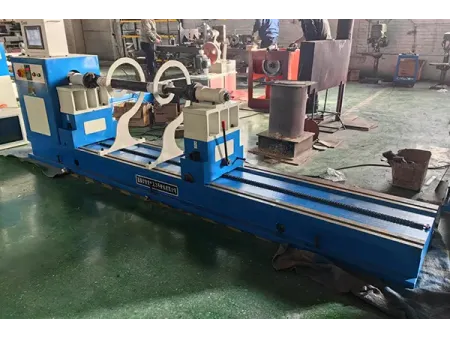

Drive Shaft Balancing Machine
Request a Quote
YRD-200A
Hard-bearing balancing machine for dynamic balancing of drive shafts
The YRD-200A is a hard-bearing balancing machine designed for the dynamic balancing of automotive drive shafts. It is suitable for balancing single drive shafts of passenger cars such as Santana, Audi, and Shanghai-brand vehicles, as well as light-duty trucks and heavy-duty vehicles including Dongfeng and Jiefang models, along with other shafts of similar types. It can also be applied to the dynamic balancing of shorter drive shafts, offering flexibility across a wide range of automotive applications.
Specifications
| Max. workpiece weight | 200kg |
| Max. workpiece length | 3500mm |
| Max. diameter of drive shaft | 130mm |
| Max. initial unbalance of drive shaft | 1000g.cm |
| Min. achievable residual unbalance (eMar) | 20g.cm |
| Phase angle error when adding a trial unbalance of 200g.cm | < 15° |
