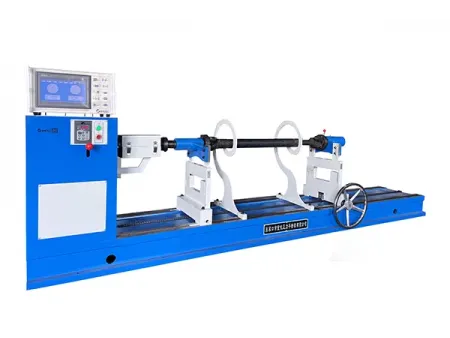

Drive Shaft Balancing Machine
Request a Quote
RDB-200B/RDB-100B
Soft-bearing balancing machine for dynamic balancing of drive shafts
The RDB is a soft-bearing balancing machine designed for the dynamic balancing of single drive shafts used in passenger cars, light-duty trucks, heavy trucks, and mining vehicles. With its soft-bearing support structure, the RDB delivers precise measurement and high efficiency, making it an ideal choice for large-scale drive shaft production facilities.
Specifications
| Model | ||
| Workpiece weight | < 200kg (with clamping tools) | 2-100kg |
| Max. workpiece diameter | Ø130mm | Ø110mm |
| Max. workpiece length | 2350mm (or based on negotiation) | 2100mm (or based on negotiation) |
| Min. measurement | 5g·cm | 5g·cm |
| Balancing speed | ≤2000r/min | 1600/2400/3200/4800 r/min |
| Max. initial unbalance of workpiece | < 1500g.cm | < 1500g.cm |
| Unbalance reduction ratio (URR) | ≥90% | ≥90% |
Features
- Equipped with advanced measurement systems including the ZL-220 embedded system and the ZL-2 industrial computer system.
- Before operation, parameters such as correction surface dimensions and correction radius are input into the measurement unit.
- Once the rotor begins to rotate, the system automatically displays the magnitude and phase of the unbalance, ensuring accurate and efficient balancing.
